Starter single parts for BMW 1502-2002tii 1602 (1975)

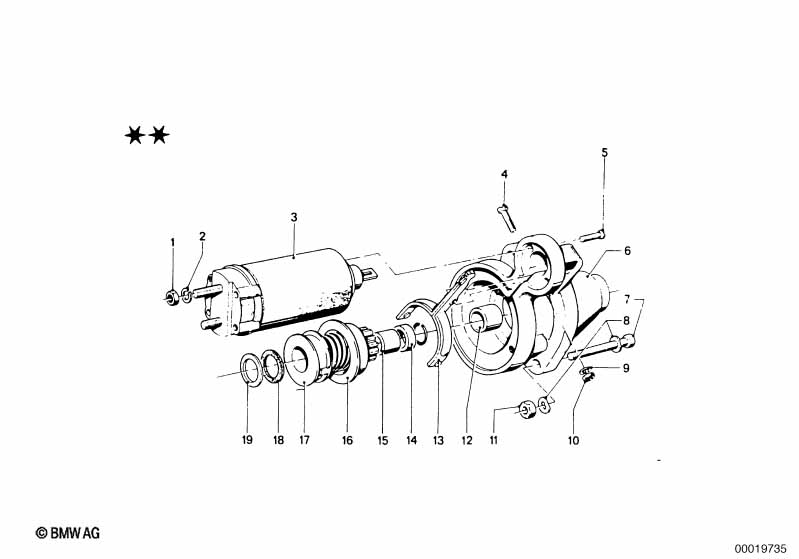

This Starter single parts technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1602. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 12 Volt / 0,8 Kw | ||||||||||
| 01 | Hex nut | M8-05-ZNNIV SI | 1 | 07119904948 | $1.00 | Shop at ECS Tuning | ||||
| 02 | Wave washer | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 03 | Solenoid switch | 1 | 12418720019 | $129.46 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Nordic countries version |
=Yes |
|||||||||
| 03 | Solenoid switch | 1 | 12411357118 | ENDED | Shop at ECS Tuning | |||||
| 04 | Fillister-head screw | 1 | 12418620114 | $1.21 | ENDED | Shop at ECS Tuning | ||||
| 05 | Countersunk head screw | 2 | 12418620158 | $0.77 | ENDED | Shop at ECS Tuning | ||||
| 06 | Housing assy front | 1 | 12411350224 | ENDED | Shop at ECS Tuning | |||||
| 07 | Hex bolt | M10X75 | 2 | 07119912677 | $1.18 | Shop at ECS Tuning | ||||
| 08 | Wave washer | B10-ZNS3 | 4 | 07119904463 | Shop at ECS Tuning | |||||
| 09 | Wave washer | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 10 | Hex nut | M6-04-2-ZN | 1 | 07119921054 | $0.11 | Shop at ECS Tuning | ||||
| 11 | Hex nut | M10-8-ZNS | 2 | 07119915558 | $0.88 | Shop at ECS Tuning | ||||
| 12 | Bushing | 1 | 12411364308 | $4.87 | Shop at ECS Tuning | |||||
| 13 | Shift lever | 1 | 12411350223 | $11.05 | ENDED | Shop at ECS Tuning | ||||
| 14 | Ring | 1 | 12411722915 | $3.63 | Shop at ECS Tuning | |||||
| 15 | Bushing | 2 | 11511722914 | $5.19 | ENDED | Shop at ECS Tuning | ||||
| 16 | Starter pinion | 1 | 12411350796 | $66.12 | Shop at ECS Tuning | |||||
| 17 | Guide ring | 1 | 12418620159 | $5.19 | ENDED | Shop at ECS Tuning | ||||
| 18 | Sleeve | 1 | 12411350797 | $0.71 | ENDED | Shop at ECS Tuning | ||||
| 19 | Shim | 1 | 12411350798 | $1.42 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
