Starter single parts for BMW 1502-2002tii 2002tii (1973)

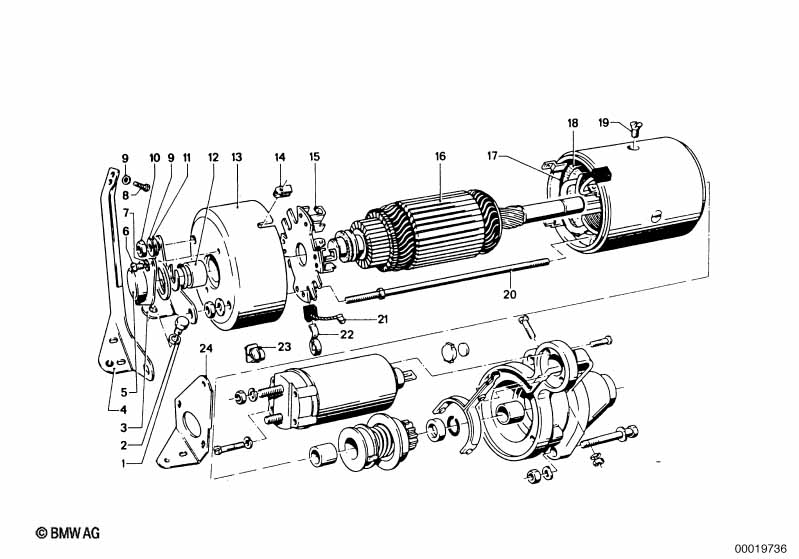

This Starter single parts technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002tii. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 12 Volt / 1,0 Kw | |||||||||
| 01 | Wave washer | B10-ZNS3 | 1 | 07119904463 | Shop at ECS Tuning | |||||
| 02 | Hex bolt | M10X16 | 1 | 07119914121 | $0.41 | Shop at ECS Tuning | ||||
| 03 | Support plate | 1 | 12418720035 | ENDED | Shop at ECS Tuning | |||||
| 04 | Support plate | 1 | 01/1970 | 10/1975 | 12411261706 | ENDED | Shop at ECS Tuning | |||
| 05 | Covering cap | 1 | 12418620151 | ENDED | Shop at ECS Tuning | |||||
| 08 | Hex bolt | M6X16-8.8-ZNS3 | 2 | 01/1970 | 10/1975 | 07119904357 | $0.36 | Shop at ECS Tuning | ||
| 09 | Wave washer | B6 | 2 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 10 | Hex nut | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 11 | Washer | A6,4-ZNNIV SI | 4 | 07119904202 | Shop at ECS Tuning | |||||
| 12 | Bushing | 1 | 12411722916 | $3.85 | Shop at ECS Tuning | |||||
| 12 | Bush | 1 | 12418720034 | $3.63 | ENDED | Shop at ECS Tuning | ||||
| 13 | Collector guiding | 1 | 12418620135 | $96.26 | ENDED | Shop at ECS Tuning | ||||
| 14 | Rubber grommet | 1 | 12418620102 | ENDED | Shop at ECS Tuning | |||||
| 15 | Brush holder plate | 1 | 12411274607 | $19.96 | Shop at ECS Tuning | |||||
| 16 | Armature | 1 | 12418720012 | $202.00 | ENDED | Shop at ECS Tuning | ||||
| 17 | Insulating | 1 | 12418620104 | ENDED | Shop at ECS Tuning | |||||
| 18 | Exciter winding | 1 | 12418720005 | ENDED | Shop at ECS Tuning | |||||
| 20 | Fillister-head screw | 2 | 12418620152 | ENDED | Shop at ECS Tuning | |||||
| 21 | Carbon brush set | 1 | 12411357116 | $8.16 | Shop at ECS Tuning | |||||
| 22 | Compression spring | 4 | 12418620143 | $1.04 | ENDED | Shop at ECS Tuning | ||||
| 23 | Cable clamp | D=12MM | 1 | 01/1970 | 10/1975 | 61131355345 | $0.82 | ENDED | Shop at ECS Tuning | |
Notes
- ENDED = the part has been discontinued (no longer available).
