Starter single parts for BMW 1500-2000CS 1800 (1971)

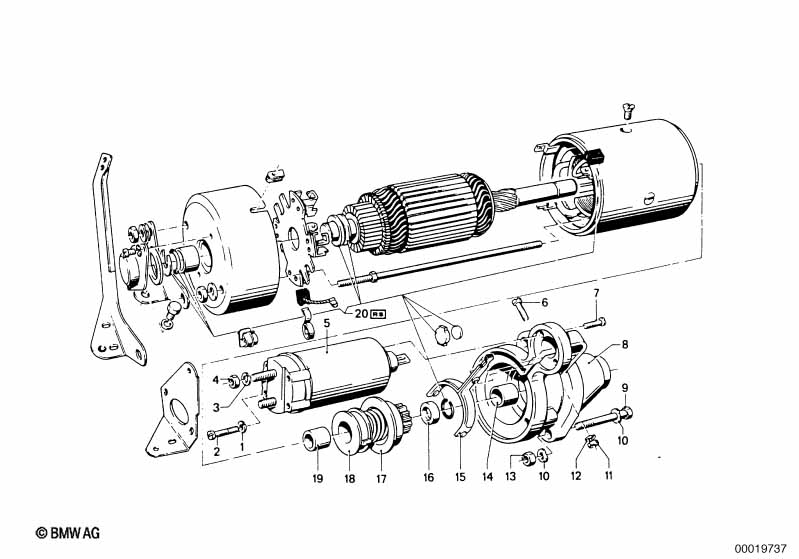

This Starter single parts technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 12 Volt / 1,0 Kw | |||||||||
| 02 | Fillister-head screw | M5X20 | 2 | 07119919433 | ENDED | Shop at ECS Tuning | ||||
| 03 | Wave washer | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Hex nut | M8-05-ZNNIV SI | 1 | 07119904948 | $1.00 | Shop at ECS Tuning | ||||
| 05 | Solenoid switch | 1 | 12418720019 | $129.46 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Nordic countries version |
=Yes |
|||||||||
| 05 | Solenoid switch | 1 | 12411357118 | ENDED | Shop at ECS Tuning | |||||
| 06 | Fillister-head screw | 1 | 12418620114 | $1.21 | ENDED | Shop at ECS Tuning | ||||
| 07 | Countersunk head screw | 2 | 12418620158 | $0.77 | ENDED | Shop at ECS Tuning | ||||
| 08 | Housing assy front | 1 | 12418620108 | $99.88 | ENDED | Shop at ECS Tuning | ||||
| 09 | Hex bolt | M10X75 | 2 | 07119912677 | $1.18 | Shop at ECS Tuning | ||||
| 09 | Hex bolt | M10X80 | 1 | 31111136251 | $1.11 | ENDED | Shop at ECS Tuning | |||
| 10 | Wave washer | B10-ZNS3 | 4 | 07119904463 | Shop at ECS Tuning | |||||
| 11 | Hex nut | M6-04-2-ZN | 1 | 07119921054 | $0.11 | Shop at ECS Tuning | ||||
| 12 | Wave washer | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 13 | Hex nut | M10-8-ZNS | 2 | 07119915558 | $0.88 | Shop at ECS Tuning | ||||
| 14 | Bushing | 1 | 12411722917 | $3.74 | Shop at ECS Tuning | |||||
| 15 | Shift lever | 1 | 12418720009 | $16.52 | ENDED | Shop at ECS Tuning | ||||
| 16 | Ring | 1 | 12411722915 | $3.63 | Shop at ECS Tuning | |||||
| 17 | Starter pinion | 1 | 12411350796 | $66.12 | Shop at ECS Tuning | |||||
| 18 | Guide ring | 1 | 12418620159 | $5.19 | ENDED | Shop at ECS Tuning | ||||
| 19 | Bushing | 1 | 11511722914 | $5.19 | ENDED | Shop at ECS Tuning | ||||
| 20 | Repair kit for starter | 1 | 12411352289 | $10.83 | ENDED | Shop at ECS Tuning | ||||
