Ignition wire/spark plug for BMW 2.5CS-3.0CSL 3.0CS (1974)

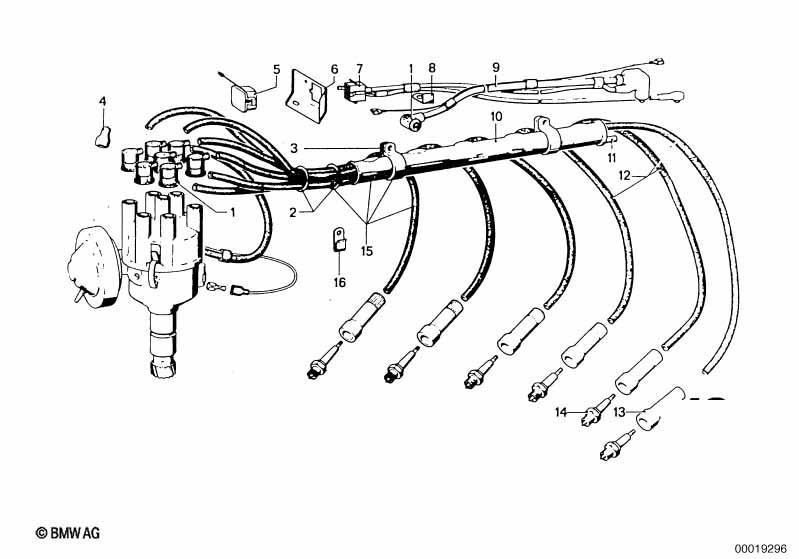

This Ignition wire/spark plug technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1974.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Suppressing socket | 7 | 12121289844 | Shop at ECS Tuning | ||||||
| 02 | O-ring | 18X5 | 2 | 11420661120 | $2.87 | ENDED | Shop at ECS Tuning | |||
| 03 | Pipe clamp | 2 | 12121350635 | $1.61 | ENDED | Shop at ECS Tuning | ||||
| 05 | Cover lid | 1 | 12121353222 | ENDED | Shop at ECS Tuning | |||||
| 06 | Holder | 1 | 12121353285 | ENDED | Shop at ECS Tuning | |||||
| 07 | Cable socket round female | 1 | 61131350968 | ENDED | Shop at ECS Tuning | |||||
| 08 | Diagnosis plug bracket | 1 | 12121353322 | ENDED | Shop at ECS Tuning | |||||
| 09 | Wiring set | 1 | 12121354555 | ENDED | Shop at ECS Tuning | |||||
| 10 | Ignition wiring tube | 1 | 12121351194 | $42.42 | Shop at ECS Tuning | |||||
| 12 | Ignition wire | 7 | 12121705675 | $11.91 | +core | Shop at ECS Tuning | ||||
| 13 | Spark plug socket | 1000-OHM | 6 | 12121356004 | $7.84 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
