Distributor-single parts for BMW 2500-3.3Li 2800 (1971)

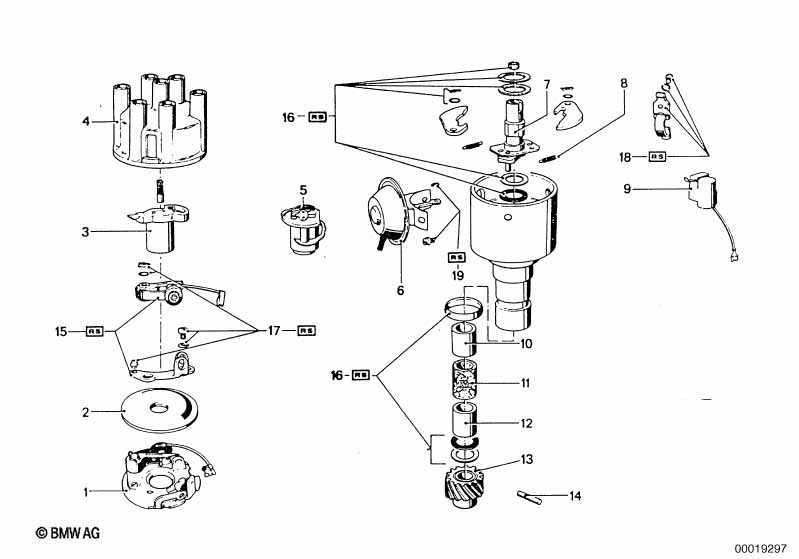

This Distributor-single parts technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| -> Fg 2068466 / 2500 -> Fg 2430778 / 2500 Rl -> Fg 2452179 / 2500 A -> Fg 2470765 / 2500 A Rl -> Fg 3031035 / 2.8 L -> Fg 3040522 / 2.8 La -> Fg 3024104 / 3.0 S -> Fg 2112806 / 3.0 Sa -> Fg 2171148 / 3.0 Sa Rl -> Fg 3050868 / 3.0 L -> Fg 3060602 / 3.0 La -> Fg 3075128 / 3.0 La Rl |
||||||||||
| 01 | Contactbreaker plate | 1 | 12111352174 | $137.60 | Shop at ECS Tuning | |||||
| 02 | Kit dust cap | 1 | 12111357227 | $3.60 | Shop at ECS Tuning | |||||
| 02 | Kit dust cap | 1 | 08/1968 | 02/1977 | 12111353119 | ENDED | Shop at ECS Tuning | |||
| 03 | Rotor | 1 | 08/1968 | 02/1977 | 12111354503 | $12.22 | Shop at ECS Tuning | |||
| 04 | Distributor cap | 1 | 08/1968 | 02/1977 | 12111354501 | $23.75 | ENDED | Shop at ECS Tuning | ||
| 05 | Rotor | 5000-OHM | 1 | 08/1968 | 02/1977 | 12111362221 | $26.90 | ENDED | Shop at ECS Tuning | |
| 06 | Vacuum regulator | 1 | 08/1968 | 02/1977 | 12111351445 | $84.91 | ENDED | Shop at ECS Tuning | ||
| 07 | Cam with pivot | 1 | 08/1968 | 02/1977 | 12111351442 | ENDED | Shop at ECS Tuning | |||
| 08 | Coil spring | 2 | 12111351443 | ENDED | Shop at ECS Tuning | |||||
| 09 | Condenser | 1 | 08/1968 | 02/1977 | 12111351448 | $15.74 | Shop at ECS Tuning | |||
| 10 | Bushing | 1 | 12111350260 | $3.49 | ENDED | Shop at ECS Tuning | ||||
| 11 | Lubricating felt | 1 | 12111350261 | $3.60 | Shop at ECS Tuning | |||||
| 12 | Bushing | 1 | 12118530602 | $6.46 | ENDED | Shop at ECS Tuning | ||||
| 13 | Helical gear wheel | 1 | 12118630126 | $69.06 | ENDED | Shop at ECS Tuning | ||||
| 14 | Cone grooved pin | 4X20 | 1 | 07119943082 | $4.63 | ENDED | Shop at ECS Tuning | |||
| 15 | Repair kit contact breaker | 1 | 12111267393 | $9.18 | Shop at ECS Tuning | |||||
| 16 | Repair set distributor-shaft | 1 | 12118630239 | $16.51 | Shop at ECS Tuning | |||||
| 17 | Set mounting parts | 1 | 12111351440 | $11.53 | ENDED | Shop at ECS Tuning | ||||
| 18 | Repair kit distributor parts | 1 | 12118630245 | $5.73 | Shop at ECS Tuning | |||||
| 19 | Repair set vacuum regulator | 1 | 12111351441 | $11.27 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
