Alternator, individual parts for BMW 2500-3.3Li 2500 (1977)

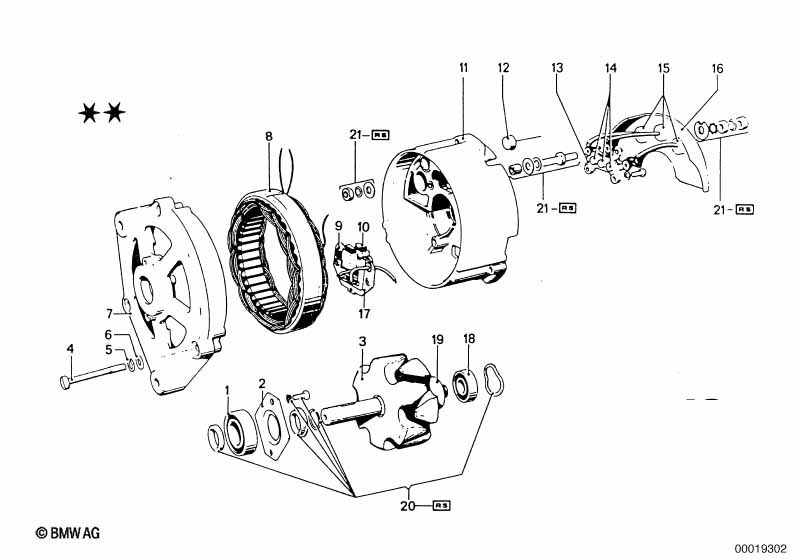

This Alternator, individual parts technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| -> Fg 2011366 / 2500 -> Fg 2141317 / 2500 A -> Fg 2120242 / 2500 Usa -> Fg 2150305 / 2500 A Usa -> Fg 2300173 / 2800 -> Fg 2440072 / 2800 A |
||||||||||
| 01 | Grooved ball bearing | 40X17X12 | 1 | 12311714522 | $17.93 | ENDED | Shop at ECS Tuning | |||
| 02 | Supporting plate | 1 | 12311459279 | $1.12 | ENDED | Shop at ECS Tuning | ||||
| 03 | Rotor | 1 | 12311350331 | ENDED | Shop at ECS Tuning | |||||
| 04 | Fillister-head screw | 2 | 12311350346 | ENDED | Shop at ECS Tuning | |||||
| 04 | Fillister-head screw | 1 | 12311350347 | ENDED | Shop at ECS Tuning | |||||
| 05 | Spring washer | B5 | 3 | 07119933060 | $0.11 | Shop at ECS Tuning | ||||
| 06 | Washer | 10X5,3X1-200 HV | 3 | 07119904206 | Shop at ECS Tuning | |||||
| 06 | Washer | 5.3-140 HV-ZNS | 3 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 07 | Housing assy front | 1 | 12311350629 | ENDED | Shop at ECS Tuning | |||||
| 08 | Stator assy | 14 VOLT GENER. | 1 | 12311350333 | ENDED | Shop at ECS Tuning | ||||
| 09 | Spring | 2 | 12318602149 | ENDED | Shop at ECS Tuning | |||||
| 10 | Carbon brush set | 1 | 12318602191 | $14.57 | Shop at ECS Tuning | |||||
| 11 | Housing assy rear | 14 VOLT GENER. | 1 | 12311350339 | ENDED | Shop at ECS Tuning | ||||
| 12 | Diode | NEGATIV | 3 | 12311350337 | ENDED | Shop at ECS Tuning | ||||
| 13 | Diode assy | 1 | 12311354589 | $50.50 | ENDED | Shop at ECS Tuning | ||||
| 14 | Diode | 3 | 12311354590 | $15.07 | ENDED | Shop at ECS Tuning | ||||
| 15 | Diode | POSITIV | 3 | 12311350336 | $9.95 | ENDED | Shop at ECS Tuning | |||
| 16 | Plate | 1 | 12311350345 | $80.63 | ENDED | Shop at ECS Tuning | ||||
| 17 | Brush holder plate | 1 | 12311354584 | $41.39 | Shop at ECS Tuning | |||||
| 18 | Grooved ball bearing | 32X12X10 | 1 | 12311739203 | $21.20 | Shop at ECS Tuning | ||||
| 19 | Slip ring | 1 | 12311354689 | ENDED | Shop at ECS Tuning | |||||
| 20 | Repair kit rotor | 1 | 12311350332 | $14.45 | ENDED | Shop at ECS Tuning | ||||
| 21 | Repair kit alternator | 1 | 12311350341 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
