Igtn. coil/sparkplug connector/sparkplug for BMW 2.5CS-3.0CSL 3.0CS (1974)

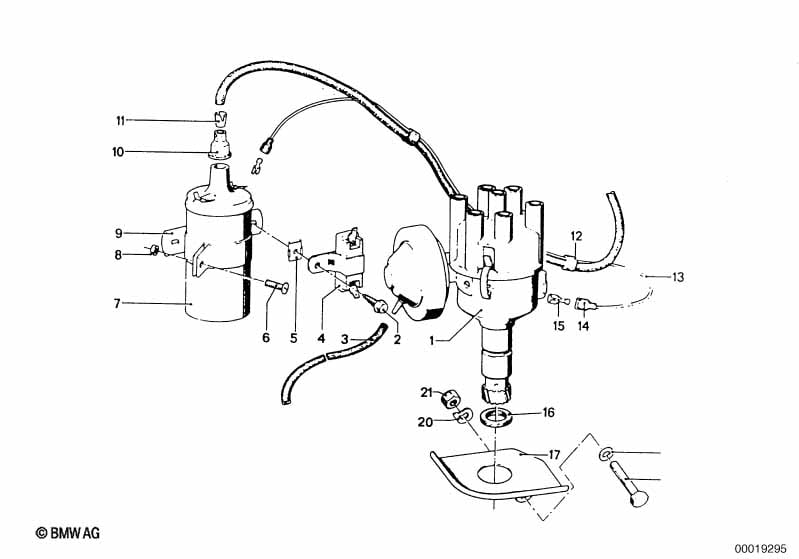

This Igtn. coil/sparkplug connector/sparkplug technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1974.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Distributor | 1 | 08/1969 | 11/1975 | 12111361236 | $533.45 | ENDED | Shop at ECS Tuning | ||
| 01 | Distributor | 1 | 08/1969 | 11/1975 | 12111271744 | $518.13 | ENDED | Shop at ECS Tuning | ||
| 03 | Vacuum hose black | 3,5X1,8 | 2 | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 04 | Resistor | 1 | 12/1968 | 11/1975 | 12131353362 | $53.03 | ENDED | Shop at ECS Tuning | ||
| 05 | Twist protection | 1 | 12/1968 | 11/1975 | 12131351124 | ENDED | Shop at ECS Tuning | |||
| according to choice | ||||||||||
| 06 | Fillister head screw | M5X16 | 1 | 07119906415 | $0.16 | Shop at ECS Tuning | ||||
| 06 | Fillister head screw | M5X25 | 1 | 12/1968 | 11/1975 | 07119907634 | ENDED | Shop at ECS Tuning | ||
| 07 | Ignition coil | 1 | 10/1973 | 11/1975 | 12131357294 | $102.24 | Shop at ECS Tuning | |||
| 08 | Hex nut | M5-4-ZN | 1 | 07119921038 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Clamp | 1 | 10/1973 | 11/1975 | 12131357328 | ENDED | Shop at ECS Tuning | |||
| 16 | O-ring | 1 | 12118530508 | $1.67 | Shop at ECS Tuning | |||||
| 17 | Protective COVER | 1 | 12111265314 | $3.53 | Shop at ECS Tuning | |||||
| 18 | Washer | A6,4-ZNNIV SI | 1 | 07119904202 | Shop at ECS Tuning | |||||
| 19 | Hex bolt | M6X45 8.8 ZNS3 | 1 | 07119902976 | $0.45 | Shop at ECS Tuning | ||||
| 20 | Wave washer | B6 | 1 | 12/1968 | 11/1975 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |
| 21 | Hex nut | M6-8-ZNNIV SI | 1 | 12/1968 | 11/1975 | 07119905543 | $0.38 | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
