Distributor for BMW 2500-3.3Li 3.0Si (1973)

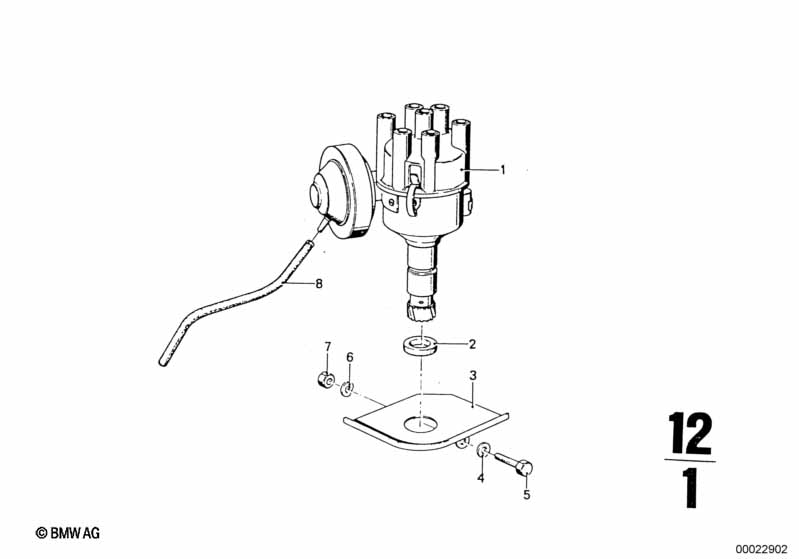

This Distributor technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Distributor | 1 | 09/1971 | 02/1977 | 12111268361 | $1472.91 | ENDED | Shop at ECS Tuning | ||
| 01 | Distributor | TSZ | 1 | 09/1973 | 02/1977 | 12111360669 | $616.59 | ENDED | Shop at ECS Tuning | |
| 01 | Distributor | 1 | 09/1973 | 02/1977 | 12111360885 | ENDED | Shop at ECS Tuning | |||
| 02 | O-ring | 1 | 12118530508 | $1.67 | Shop at ECS Tuning | |||||
| 03 | Protective COVER | 1 | 12111265314 | $3.53 | Shop at ECS Tuning | |||||
| 04 | Washer | A6,4-ZNNIV SI | 1 | 07119904202 | Shop at ECS Tuning | |||||
| 05 | Hex bolt | M6X45 8.8 ZNS3 | 1 | 07119902976 | $0.45 | Shop at ECS Tuning | ||||
| 06 | Wave washer | B6 | 1 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 07 | Hex nut | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 08 | Vacuum hose black | 3,5X1,8 | X | 08/1968 | 02/1977 | 11727545323 | $14.82 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
