Distributor for BMW 2500-3.3Li 2800 (1973)

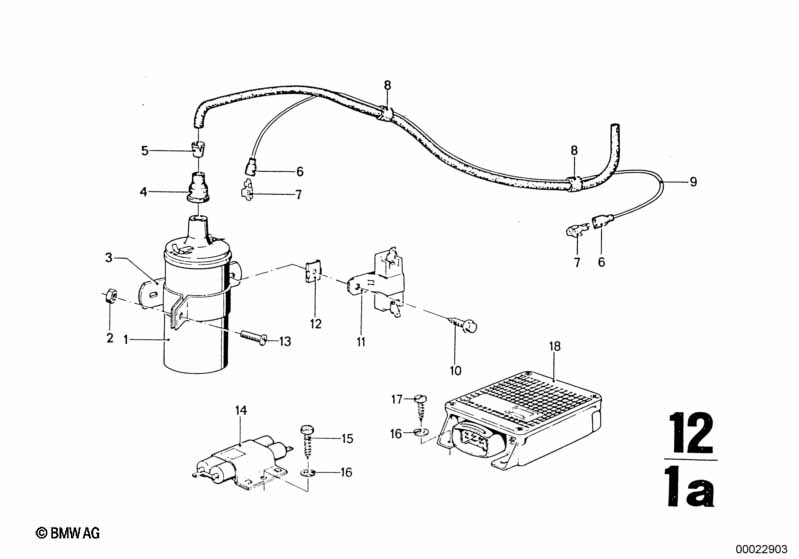

This Distributor technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ignition coil | 1 | 09/1973 | 02/1977 | 12131357294 | $102.24 | Shop at ECS Tuning | |||
| 02 | Hex nut | M5-4-ZN | 1 | 07119921038 | $0.38 | Shop at ECS Tuning | ||||
| 03 | Clamp | 1 | 09/1973 | 02/1977 | 12131357328 | ENDED | Shop at ECS Tuning | |||
| 04 | Protection cap | 1 | 08/1968 | 02/1977 | 12118536129 | $6.07 | Shop at ECS Tuning | |||
| 05 | Cable sleeve | 1 | 08/1968 | 02/1977 | 12128536120 | $6.76 | ENDED | Shop at ECS Tuning | ||
| 07 | Cable socket female | B=7,5/L=19,2MM | 2 | 08/1968 | 02/1977 | 61138061769 | $0.48 | ENDED | Shop at ECS Tuning | |
| 08 | Grommet | 2 | 08/1968 | 02/1977 | 61138070189 | ENDED | Shop at ECS Tuning | |||
| 09 | Cable black | 1,5MM² | 1 | 08/1968 | 02/1977 | 07129955157 | $0.46 | Shop at ECS Tuning | ||
| 09 | Cable black | 1,5 MM? | 1 | 08/1968 | 02/1977 | 61121391708 | $2.43 | Shop at ECS Tuning | ||
| 12 | Twist protection | 1 | 08/1968 | 02/1977 | 12131351124 | ENDED | Shop at ECS Tuning | |||
| 13 | Fillister head screw | M5X16 | 1 | 07119906415 | $0.16 | Shop at ECS Tuning | ||||
| 13 | Fillister head screw | M5X25 | 1 | 08/1968 | 02/1977 | 07119907634 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
