Distributor-single parts for BMW 2500-3.3Li 3.0Si (1975)

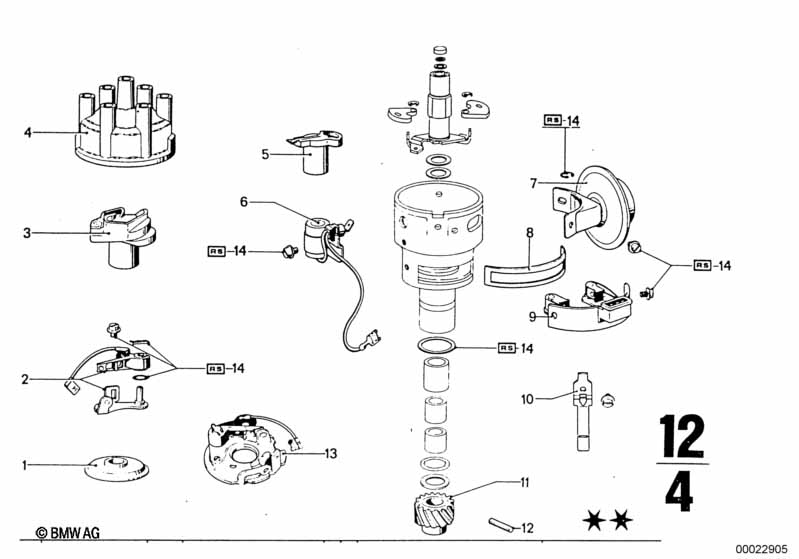

This Distributor-single parts technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kit dust cap | 1 | 12111355632 | $3.25 | ENDED | Shop at ECS Tuning | ||||
| 02 | Repair kit contact breaker | 1 | 09/1974 | 07/1976 | 12111271687 | $7.80 | ENDED | Shop at ECS Tuning | ||
| 04 | Distributor cap | 1 | 12111363422 | $28.24 | ENDED | Shop at ECS Tuning | ||||
| 04 | Distributor cap | 1 | 12111363292 | Shop at ECS Tuning | ||||||
| 05 | Rotor | 1 | 09/1974 | 07/1976 | 12111267411 | ENDED | Shop at ECS Tuning | |||
| 06 | Condenser | 1 | 09/1974 | 07/1976 | 12111268441 | $10.87 | Shop at ECS Tuning | |||
| 07 | Vacuum regulator | 1 | 09/1974 | 07/1976 | 12111362631 | $33.18 | Shop at ECS Tuning | |||
| 07 | Vacuum regulator | 1 | 09/1974 | 07/1976 | 12111359707 | $62.40 | ENDED | Shop at ECS Tuning | ||
| BOSCH ...671 | ||||||||||
| 10 | Clip | 1 | 12111357286 | $2.11 | Shop at ECS Tuning | |||||
| 11 | Helical gear wheel | 1 | 12118630126 | $69.06 | ENDED | Shop at ECS Tuning | ||||
| 12 | Cone grooved pin | 4X20 | 1 | 07119943082 | $4.63 | ENDED | Shop at ECS Tuning | |||
| 14 | Repair kit distributor parts | 1 | 12111355629 | $13.60 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
