Alternator for BMW R 69 -69 R69 (1960)

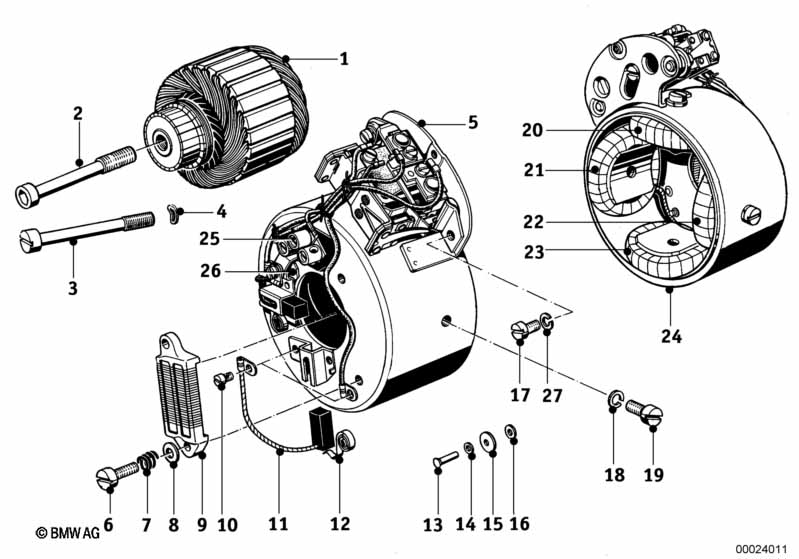

This Alternator technical drawing provides a detailed breakdown of the assembly for the R 69 -69 R69. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1960.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Armature | 1 | 12318002202 | ENDED | Shop at ECS Tuning | |||||
| 02 | Inner hex bolt | 1 | 12318002205 | $6.26 | ENDED | Shop at ECS Tuning | ||||
| 02 | Fillister-head screw | 1 | 12318002314 | $11.58 | ENDED | Shop at ECS Tuning | ||||
| Bosch | ||||||||||
| 11 | Brush | 2 | 12318002219 | $11.10 | ENDED | Shop at ECS Tuning | ||||
| 12 | Compression spring | 2 | 12318002311 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW R 69 -69 R69 Alternator?
- This technical diagram illustrates the Alternator within the Engine electrical system group for the R 69 -69 R69 produced during 1960. It provides a detailed exploded view of the components, identifying key parts such as the Armature (Part #12318002202).
- Which models use the hardware listed in this Alternator?
- The hardware and components featured in the Alternator are specific to the R 69 -69 R69 produced during 1960. These technical specifications ensure that parts like the Armature (12318002202) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Alternator assembly?
- Each item in the Alternator corresponds to the numbered list below the illustration. For the R 69 -69 R69, you can identify the Armature by locating its position on the schematic, which then links to the official BMW part number 12318002202 for the Engine electrical system section.
