Single parts f generator water-cooled for BMW 7 Series E38 750iLP (2001)

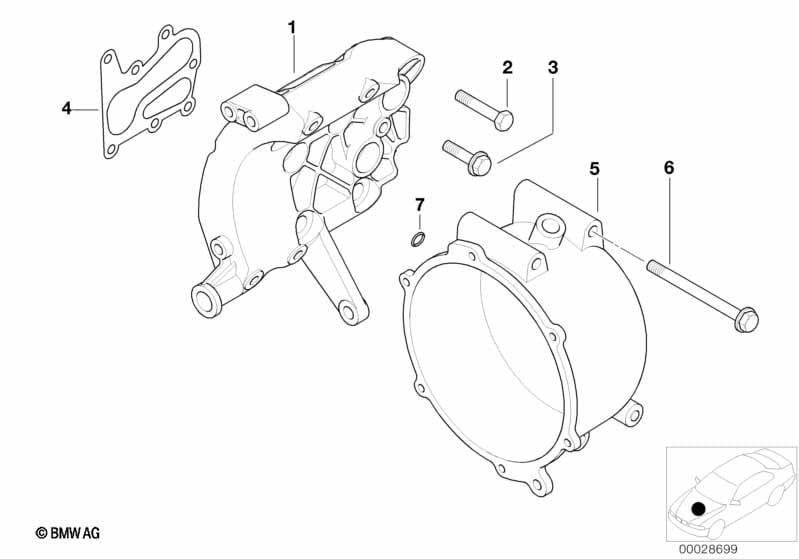

This Single parts f generator water-cooled technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 750iLP. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Generator supporting bracket | 1 | 09/1998 | 12312457983 | Shop at ECS Tuning | |||||
| 02 | Hex bolt | M8X35 | 3 | 09/1998 | 07119913676 | $0.36 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Wave washer | 8,4X15-ZNS3 | 3 | 09/1998 | 07119904115 | $0.09 | Shop at ECS Tuning | |||
| 03 | Hex bolt with washer | M8X25-Z3 | 5 | 09/1998 | 07119915082 | $0.62 | Shop at ECS Tuning | |||
| 04 | Gasket Asbestos Free | 1 | 09/1998 | 12311742943 | $3.75 | Shop at ECS Tuning | ||||
| 05 | Housing f generator | 1 | 09/1998 | 12311707746 | $66.60 | +core | Shop at ECS Tuning | |||
| 06 | Hex bolt with washer | M8X90-U1 | 4 | 09/1998 | 07119905392 | $1.53 | Shop at ECS Tuning | |||
| 07 | O-ring | 12X2,5 | 1 | 09/1998 | 12311702235 | $0.84 | Shop at ECS Tuning | |||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 750iLP Single parts f generator water-cooled?
- This technical diagram illustrates the Single parts f generator water-cooled within the Engine electrical system group for the 7 Series E38 750iLP produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the Generator supporting bracket (Part #12312457983).
- Which models use the hardware listed in this Single parts f generator water-cooled?
- The hardware and components featured in the Single parts f generator water-cooled are specific to the 7 Series E38 750iLP produced during 2001. These technical specifications ensure that parts like the Generator supporting bracket (12312457983) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Single parts f generator water-cooled assembly?
- Each item in the Single parts f generator water-cooled corresponds to the numbered list below the illustration. For the 7 Series E38 750iLP, you can identify the Generator supporting bracket by locating its position on the schematic, which then links to the official BMW part number 12312457983 for the Engine electrical system section.
