Alternator, individual parts for BMW 3 Series E92 LCI M3 (2013)

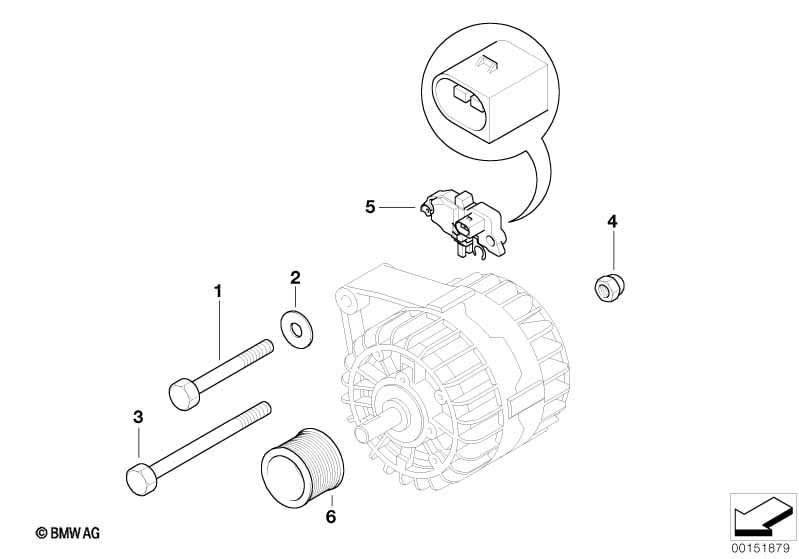

This Alternator, individual parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 LCI M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex bolt with washer | M10X70 | 1 | 07119905818 | $1.78 | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M10X125 | 1 | 07119905523 | $2.84 | Shop at ECS Tuning | ||||
| 04 | Cap nut | 1 | 12427565287 | $3.23 | Shop at ECS Tuning | |||||
| 05 | Voltage regulator | VALEO | 1 | 12317847517 | Shop at ECS Tuning | |||||
| 06 | Pulley | 180A | 1 | 12317839339 | $71.73 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E92 LCI M3 Alternator, individual parts?
- This technical diagram illustrates the Alternator, individual parts within the Engine electrical system group for the 3 Series E92 LCI M3 produced during 2013. It provides a detailed exploded view of the components, identifying key parts such as the Hex bolt with washer (Part #07119905818).
- Which models use the hardware listed in this Alternator, individual parts?
- The hardware and components featured in the Alternator, individual parts are specific to the 3 Series E92 LCI M3 produced during 2013. These technical specifications ensure that parts like the Hex bolt with washer (07119905818) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Alternator, individual parts assembly?
- Each item in the Alternator, individual parts corresponds to the numbered list below the illustration. For the 3 Series E92 LCI M3, you can identify the Hex bolt with washer by locating its position on the schematic, which then links to the official BMW part number 07119905818 for the Engine electrical system section.
