Distributor-single parts for BMW 1500-2000CS 1800 (1966)

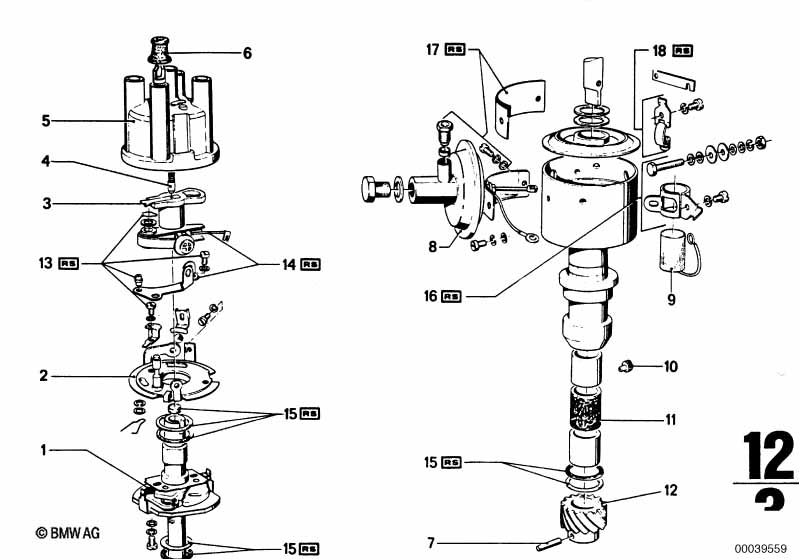

This Distributor-single parts technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1966.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Early version | ||||||||||
| 02 | Contactbreaker plate | 1 | 12118630130 | $128.34 | Shop at ECS Tuning | |||||
| 03 | Rotor | 1 | 12111354504 | $10.57 | ENDED | Shop at ECS Tuning | ||||
| 05 | Distributor cap | 1 | 12111270927 | Shop at ECS Tuning | ||||||
| 06 | Rain protection cap | 1 | 12118630154 | $5.58 | ENDED | Shop at ECS Tuning | ||||
| 07 | Cone grooved pin | 4X20 | 1 | 07119943082 | $4.63 | ENDED | Shop at ECS Tuning | |||
| 08 | Vacuum regulator | 1 | 02/1962 | 06/1971 | 12118630156 | $308.02 | ENDED | Shop at ECS Tuning | ||
| 09 | Condenser | 1 | 12111354497 | $6.16 | Shop at ECS Tuning | |||||
| 10 | NIpple | 1 | 12318630103 | ENDED | Shop at ECS Tuning | |||||
| 12 | Helical gear wheel | 1 | 12118630126 | $69.06 | ENDED | Shop at ECS Tuning | ||||
| 13 | Repair kit distributor parts | 1 | 12118630249 | $14.13 | ENDED | Shop at ECS Tuning | ||||
| 14 | Contact breaker | 1 | 02/1962 | 06/1971 | 12118630235 | $10.94 | Shop at ECS Tuning | |||
| 15 | Repair set distributor-shaft | 1 | 12118630239 | $16.51 | Shop at ECS Tuning | |||||
| 18 | Repair kit distributor parts | 1 | 12118630245 | $5.73 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
