Battery cable for BMW 5 Series E39 528i (2000)

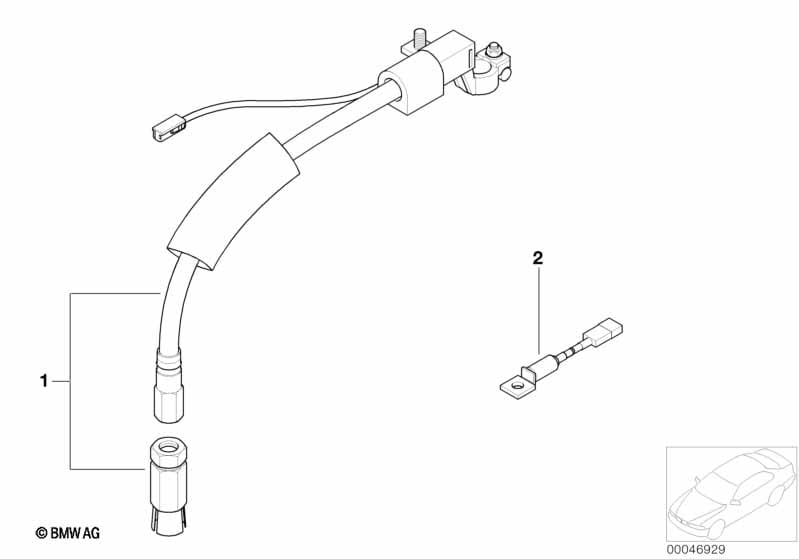

This Battery cable technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rep.kit f safety battery terminal clamp | 50 QMM | 1 | 09/1998 | 12421733937 | $381.44 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 528i Battery cable?
- This technical diagram illustrates the Battery cable within the Engine electrical system group for the 5 Series E39 528i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Rep.kit f safety battery terminal clamp (Part #12421733937).
- Which models use the hardware listed in this Battery cable?
- The hardware and components featured in the Battery cable are specific to the 5 Series E39 528i produced during 2000. These technical specifications ensure that parts like the Rep.kit f safety battery terminal clamp (12421733937) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Battery cable assembly?
- Each item in the Battery cable corresponds to the numbered list below the illustration. For the 5 Series E39 528i, you can identify the Rep.kit f safety battery terminal clamp by locating its position on the schematic, which then links to the official BMW part number 12421733937 for the Engine electrical system section.
