Battery cable 2nd battery/E-Cat for BMW 7 Series E38 750iLS (2001)

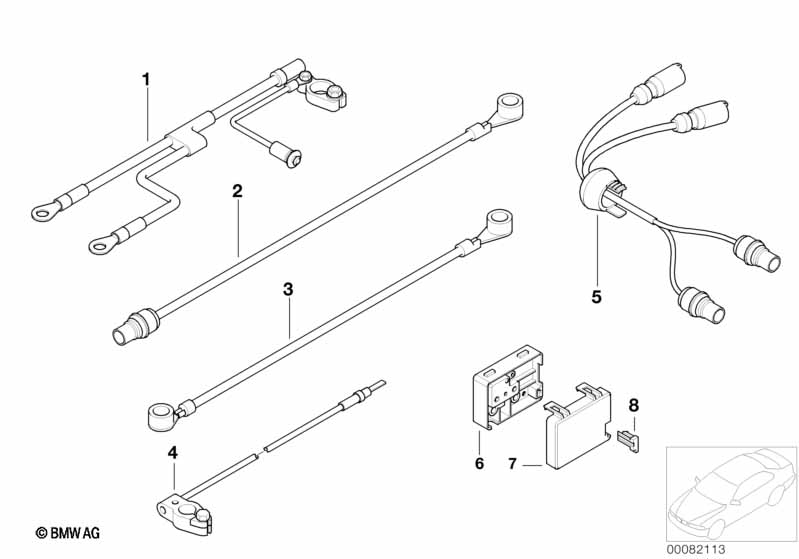

This Battery cable 2nd battery/E-Cat technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 750iLS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Battery cable 2nd battery | 1 | 09/1998 | 12421716315 | $77.18 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Positive cable | L= 775 MM | 1 | 09/1998 | 12421733931 | $74.92 | Shop at ECS Tuning | |||
| 02 | Positive cable | L= 425 MM | 1 | 09/1998 | 12421733932 | $74.92 | Shop at ECS Tuning | |||
| 03 | Ground cable | L= 135 MM | 1 | 09/1998 | 12421733930 | $59.64 | Shop at ECS Tuning | |||
| 03 | Ground cable | 1 | 09/1998 | 12421736848 | $39.01 | ENDED | Shop at ECS Tuning | |||
| 04 | Battery cable (-), 2nd battery | 1 | 09/1998 | 12421716326 | $36.85 | +core | Shop at ECS Tuning | |||
| 05 | Connecting line | 1 | 09/1998 | 12421716339 | $101.95 | ENDED | Shop at ECS Tuning | |||
| 06 | Fuse housing | 1 | 09/1998 | 61138371479 | $42.62 | Shop at ECS Tuning | ||||
| 07 | Cover, fuse box | F. 2- FACH | 1 | 09/1998 | 61318367767 | $4.38 | Shop at ECS Tuning | |||
| 08 | Lead seal for Service (red) | 1 | 09/1998 | 61138378461 | $0.55 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
