Glow plug unit for BMW 1 Series E87 118d (2007)

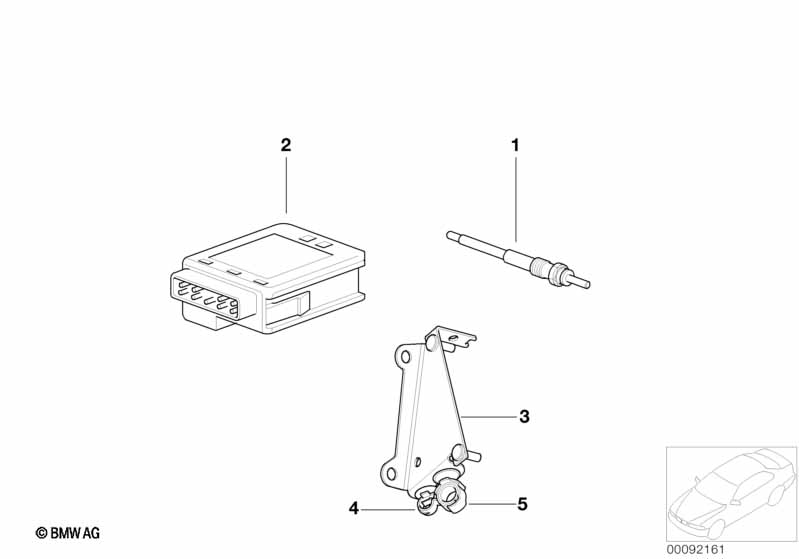

This Glow plug unit technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Glow plug | 4 | 09/2001 | 12237786869 | $25.12 | Shop at ECS Tuning | ||||
| 02 | Preheating control unit | 1 | 09/2001 | 12217801200 | Shop at ECS Tuning | |||||
| 03 | Bracket, relay, glow plug | 1 | 09/2001 | 12217806072 | ENDED | Shop at ECS Tuning | ||||
| 04 | Clip retainer | 1 | 09/2001 | 61138368029 | $0.43 | Shop at ECS Tuning | ||||
| 05 | Wire holder, two-place | 1 | 09/2001 | 61138380213 | $0.35 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E87 118d Glow plug unit?
- This technical diagram illustrates the Glow plug unit within the Engine electrical system group for the 1 Series E87 118d produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Glow plug (Part #12237786869).
- Which models use the hardware listed in this Glow plug unit?
- The hardware and components featured in the Glow plug unit are specific to the 1 Series E87 118d produced during 2007. These technical specifications ensure that parts like the Glow plug (12237786869) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Glow plug unit assembly?
- Each item in the Glow plug unit corresponds to the numbered list below the illustration. For the 1 Series E87 118d, you can identify the Glow plug by locating its position on the schematic, which then links to the official BMW part number 12237786869 for the Engine electrical system section.
