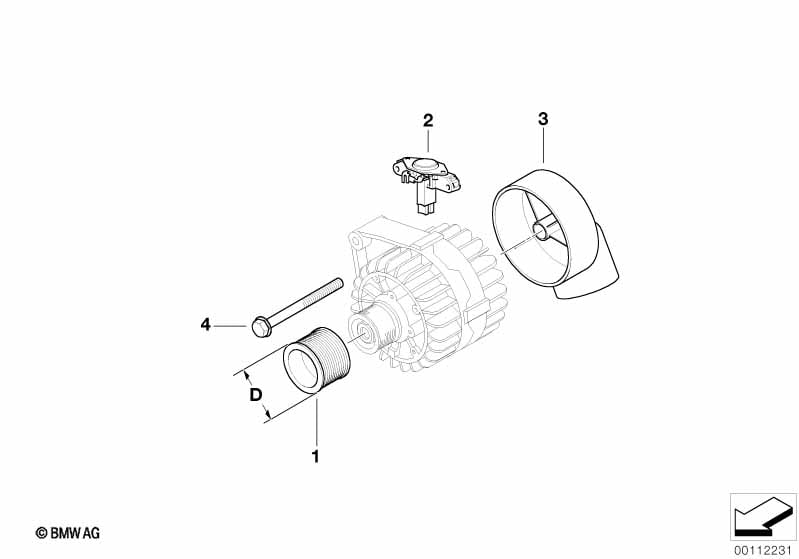

Alternator, individual parts for BMW 5 Series E61 520d (2007)
This Alternator, individual parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pulley | D=58,8MM | 1 | 12317789982 | $41.23 | Shop at ECS Tuning | ||||
| 02 | Voltage regulator | VALEO | 1 | 01/2007 | 12318510092 | Shop at ECS Tuning | ||||
| 03 | Cover cap, alternator | 1 | 12317788820 | Shop at ECS Tuning | ||||||
| 04 | Hex bolt with washer | M10X125 | 1 | 07119905523 | $2.84 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E61 520d Alternator, individual parts?
- This technical diagram illustrates the Alternator, individual parts within the Engine electrical system group for the 5 Series E61 520d produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Pulley (Part #12317789982).
- Which models use the hardware listed in this Alternator, individual parts?
- The hardware and components featured in the Alternator, individual parts are specific to the 5 Series E61 520d produced during 2007. These technical specifications ensure that parts like the Pulley (12317789982) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Alternator, individual parts assembly?
- Each item in the Alternator, individual parts corresponds to the numbered list below the illustration. For the 5 Series E61 520d, you can identify the Pulley by locating its position on the schematic, which then links to the official BMW part number 12317789982 for the Engine electrical system section.
