Battery cable/starter cable for BMW 5 Series E61 535d (2007)

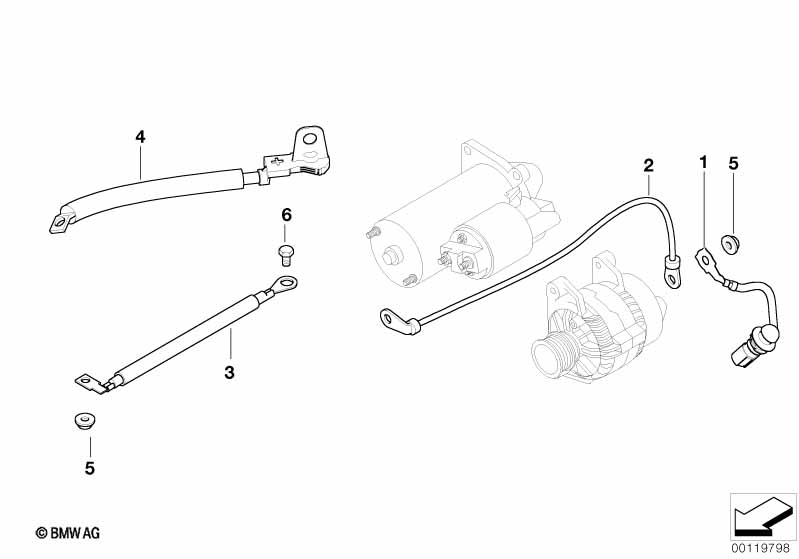

This Battery cable/starter cable technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 535d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lead for preheater system | 1 | 12427789231 | $16.65 | Shop at ECS Tuning | |||||
| 02 | Cable alternator-starter | 1 | 12527789222 | $22.28 | Shop at ECS Tuning | |||||
| 03 | Ground cable | 330 MM | 1 | 12427798076 | $20.05 | Shop at ECS Tuning | ||||
| 04 | Cable, start motor supp point B+ | 1 | 12427789755 | Shop at ECS Tuning | ||||||
| 05 | Cap nut | M8 | 1 | 12528576285 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M8X20-ZNNIV SI | 1 | 07119903039 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E61 535d Battery cable/starter cable?
- This technical diagram illustrates the Battery cable/starter cable within the Engine electrical system group for the 5 Series E61 535d produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Lead for preheater system (Part #12427789231).
- Which models use the hardware listed in this Battery cable/starter cable?
- The hardware and components featured in the Battery cable/starter cable are specific to the 5 Series E61 535d produced during 2007. These technical specifications ensure that parts like the Lead for preheater system (12427789231) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Battery cable/starter cable assembly?
- Each item in the Battery cable/starter cable corresponds to the numbered list below the illustration. For the 5 Series E61 535d, you can identify the Lead for preheater system by locating its position on the schematic, which then links to the official BMW part number 12427789231 for the Engine electrical system section.
