Control unit box for BMW 5 Series E60 520i (2023)

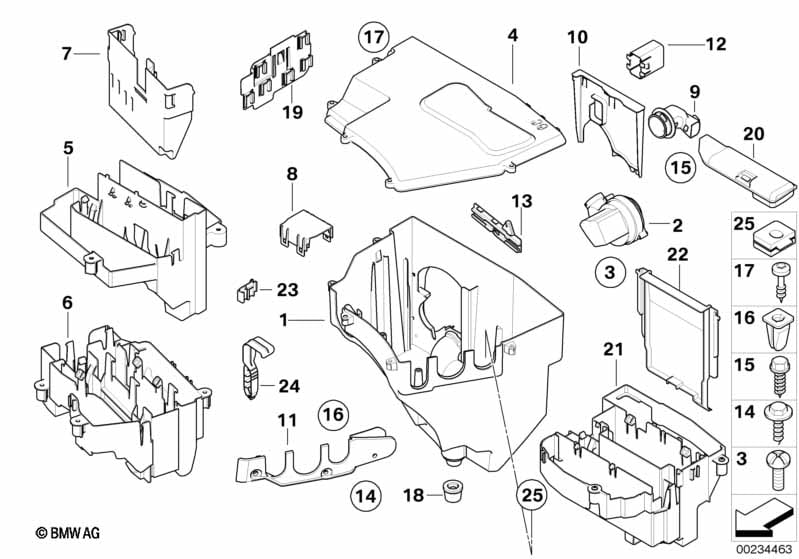

This Control unit box technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY APPLIES TO E-BOX-VENTILATION |
||||||||||
| 02 | E-box fan | 1 | 12901438062 | $144.83 | Shop at ECS Tuning | |||||
| 03 | Screw for thermoplastic plastics | M5X12 | 2 | 07129904293 | $1.05 | Shop at ECS Tuning | ||||
| 04 | Cover electronic-box | 1 | 12907520899 | $29.14 | Shop at ECS Tuning | |||||
| 06 | Control unit support | 1 | 12907571024 | $18.54 | Shop at ECS Tuning | |||||
| 07 | Carrier plate | 1 | 12907520902 | $3.46 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission or Hot-climate version |
S205A=Yes S823A=Yes |
|||||||||
| 09 | Air channel | 1 | 12907540119 | $9.53 | Shop at ECS Tuning | |||||
| For vehicles with Hot-climate version and Automatic transmission |
S823A=Yes S205A=Yes |
|||||||||
| 10 | Slider with ventilation | 1 | 09/2004 | 12907543171 | $3.27 | Shop at ECS Tuning | ||||
| For vehicles with Hot-climate version and Automatic transmission |
S823A=No S205A=Yes |
|||||||||
| 10 | Slider without ventilation | 1 | 09/2004 | 12907543170 | Shop at ECS Tuning | |||||
| 11 | sealing | 1 | 12907520907 | $5.73 | Shop at ECS Tuning | |||||
| For vehicles with Hot-climate version and Automatic transmission |
S823A=Yes S205A=Yes |
|||||||||
| 12 | Vent pipe | 1 | 12907520906 | $2.18 | Shop at ECS Tuning | |||||
| 13 | Lock lever | 1 | 12907520897 | $2.38 | Shop at ECS Tuning | |||||
| 14 | Sheet metal screw with washer | ST 4,8X19 | 3 | 07119904263 | $0.29 | Shop at ECS Tuning | ||||
| 15 | Plastic bolt | 6,0X16-Z2 | 4 | 12907569973 | $0.47 | Shop at ECS Tuning | ||||
| 16 | Expanding nut | ST 4.8 WEISS | 3 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 17 | Screw for thermoplastic plastics | 5 | 12901438016 | $1.12 | Shop at ECS Tuning | |||||
| 18 | Grommet | 1 | 12901436449 | $3.37 | Shop at ECS Tuning | |||||
| 18 | Grommet | 1 | 01/2005 | 12907548689 | $3.37 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission or Hot-climate version |
S205A=Yes S823A=Yes |
|||||||||
| 20 | Intake duct | 1 | 12907541793 | $14.79 | Shop at ECS Tuning | |||||
| 25 | Dummy grommet | 1 | 12527535640 | $1.97 | Shop at ECS Tuning | |||||
