Battery cable for BMW 3 Series E46 330xd (2001)

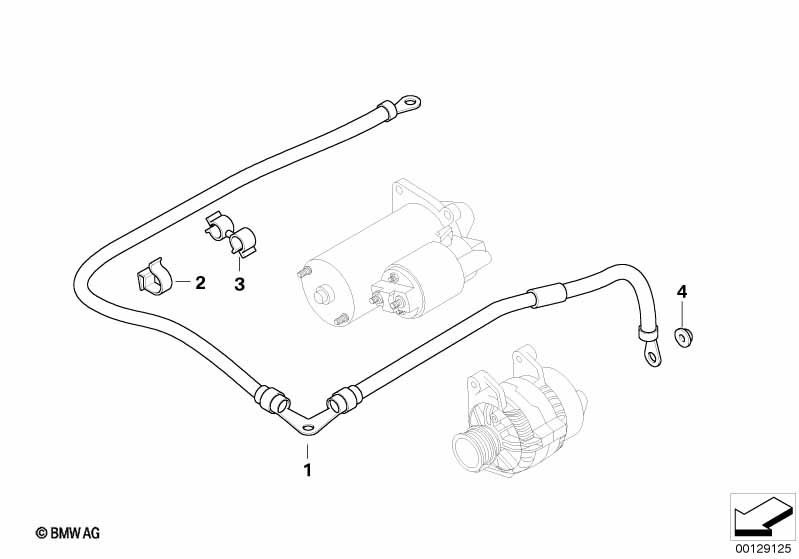

This Battery cable technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330xd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cable, altern, start motor supp point B+ | 1 | 12422249645 | Shop at ECS Tuning | ||||||
| 02 | Cable clamp | X | 11787549563 | $1.04 | Shop at ECS Tuning | |||||
| 03 | Hose clamp | X | 12517786249 | ENDED | Shop at ECS Tuning | |||||
| 04 | Hex bolt with washer | M8X16 | X | 07119905528 | $0.62 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
