Wiring connections for BMW 5 Series E28 524d (1987)

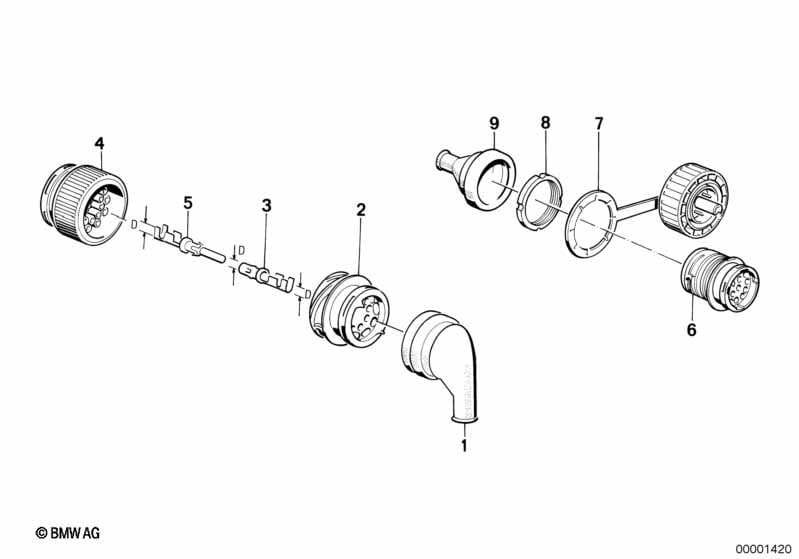

This Wiring connections technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 524d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Protection cap | KBB | 2 | 12521707302 | $2.87 | Shop at ECS Tuning | ||||
| 02 | Plug housing | 20POL | 1 | 12521707284 | $8.28 | ENDED | Shop at ECS Tuning | |||
| 03 | Snap-in receptacle 2.5 | 0,5-1,0MM² | X | 61131376202 | $0.98 | Shop at ECS Tuning | ||||
| 03 | Snap-in receptacle 2.5 | 1,0-2,5MM² | X | 61131376204 | $0.98 | Shop at ECS Tuning | ||||
| 03 | Snap-in receptacle 2.5 | 2,5-4,0MM² | X | 61131376206 | $0.98 | Shop at ECS Tuning | ||||
| 04 | Plug housing | 20POL | 1 | 12521707283 | $13.40 | Shop at ECS Tuning | ||||
| 05 | Circular contact 2.5 | 2,5-4,0MM² AG | X | 61139344421 | Shop at ECS Tuning | |||||
| 05 | Circular contact 2.5 | 0,5-1,0MM² | X | 61131376191 | $0.55 | Shop at ECS Tuning | ||||
| 05 | Circular contact 2.5 | 1,0-2,5MM² | X | 61131376193 | $1.12 | Shop at ECS Tuning | ||||
| 06 | Plug housing | DIAGNOSE | 1 | 12521711218 | $8.52 | Shop at ECS Tuning | ||||
| 08 | Nut | DIAGNOSE | 1 | 12521711219 | $4.02 | Shop at ECS Tuning | ||||
| 09 | Protection cap | DS/MS | 1 | 12521309527 | $8.28 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 524d Wiring connections?
- This technical diagram illustrates the Wiring connections within the Engine electrical system group for the 5 Series E28 524d produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Protection cap (Part #12521707302).
- Which models use the hardware listed in this Wiring connections?
- The hardware and components featured in the Wiring connections are specific to the 5 Series E28 524d produced during 1987. These technical specifications ensure that parts like the Protection cap (12521707302) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Wiring connections assembly?
- Each item in the Wiring connections corresponds to the numbered list below the illustration. For the 5 Series E28 524d, you can identify the Protection cap by locating its position on the schematic, which then links to the official BMW part number 12521707302 for the Engine electrical system section.
