Control unit box for BMW 3 Series E46 318ti (2004)

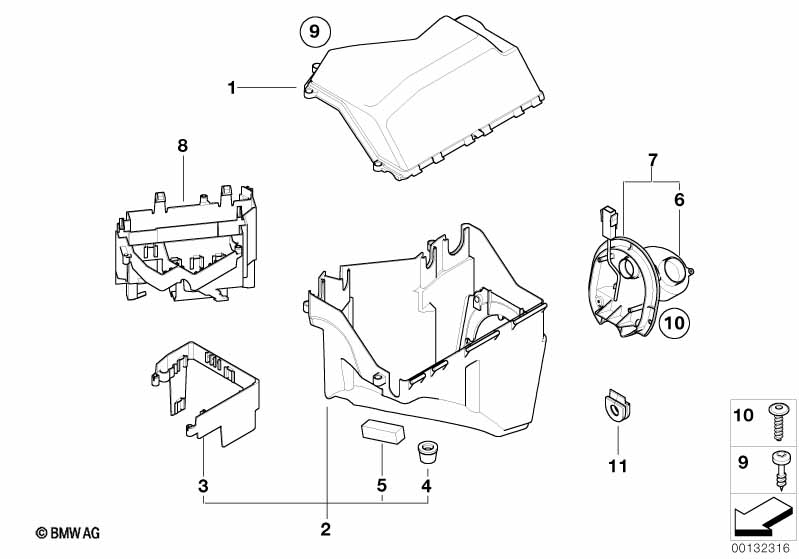

This Control unit box technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover electronic-box | 1 | 12907521582 | $29.14 | Shop at ECS Tuning | |||||
| 02 | Bottom part, E-Box | 1 | 12907534921 | $46.27 | Shop at ECS Tuning | |||||
| 03 | Carrier relay | 1 | 12907534513 | Shop at ECS Tuning | ||||||
| 04 | Grommet | 1 | 12901436449 | $3.37 | Shop at ECS Tuning | |||||
| 05 | Support | 1 | 12901744591 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Hot-climate version |
S205A=Yes S823A=Yes |
|||||||||
| 06 | E-box fan | 1 | 12901438062 | $144.83 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission or Hot-climate version |
S205A=No S823A=No |
|||||||||
| 07 | Cover | 1 | 12907570071 | $5.60 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Hot-climate version |
S205A=Yes S823A=Yes |
|||||||||
| 07 | Cover with blower | 1 | 12907570074 | $90.84 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Cable tie | 1 | 61138370478 | $0.35 | Shop at ECS Tuning | |||||
| 08 | Control unit support | 1 | 12907534512 | Shop at ECS Tuning | ||||||
| 09 | Plastic bolt | 6,0X16-Z2 | 4 | 12907569973 | $0.47 | Shop at ECS Tuning | ||||
| 10 | Screw for thermoplastic plastics | M5X12 | 2 | 07129904293 | $1.05 | Shop at ECS Tuning | ||||
| 11 | Grommet | 1 | 12527506715 | $3.37 | Shop at ECS Tuning | |||||
