Starter for BMW 3 Series E90 320i (2008)

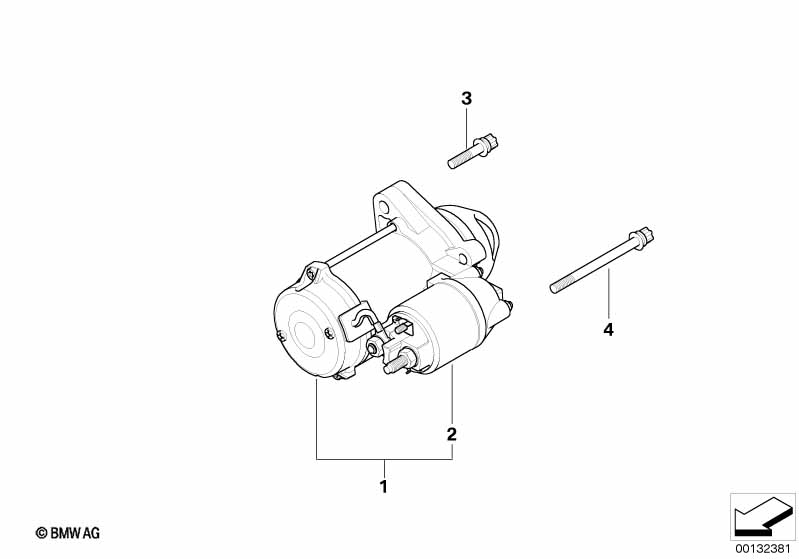

This Starter technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP REMAN starter motor | 1,1 KW | 1 | 12412354706 | Shop at ECS Tuning | |||||
| 01 | RP starter motor | 1,1KW | 1 | 12417610341 | Shop at ECS Tuning | |||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 01 | RP starter motor | 1,1KW | 1 | 12417610341 | Shop at ECS Tuning | |||||
| 02 | Solenoid switch | BOSCH | 1 | 12417515393 | $83.43 | +core | Shop at ECS Tuning | |||
| 03 | ASA-Bolt | M10X30 | 1 | 07129903798 | $0.96 | Shop at ECS Tuning | ||||
| 04 | ASA-Bolt | M10X85-8.8-ZNS3 | 1 | 07129903800 | $1.78 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
