Control unit box for BMW 3 Series E90 325i (2008)

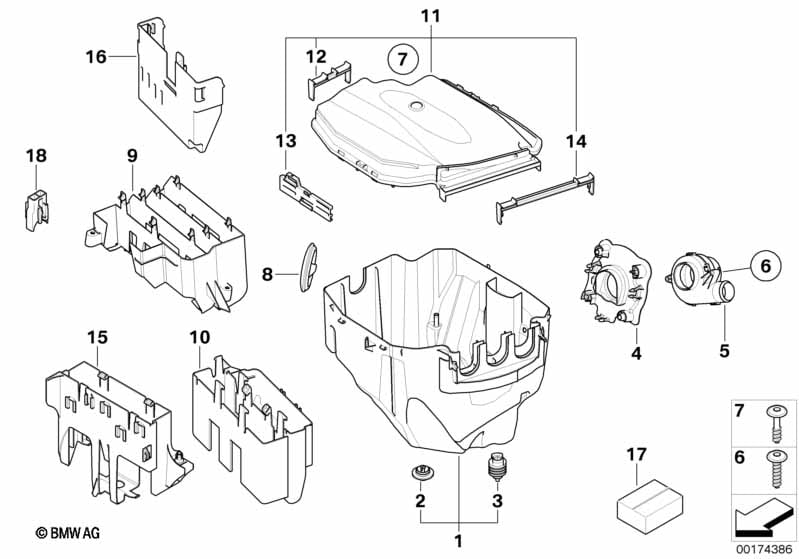

This Control unit box technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | E-box | 1 | 12907584146 | $56.79 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair kit for E module | 1 | 12907583910 | $22.30 | Shop at ECS Tuning | |||||
| 02 | Water outlet valve | 1 | 12907528871 | $0.50 | Shop at ECS Tuning | |||||
| 03 | Stop buffer | 1 | 12907537064 | $3.87 | Shop at ECS Tuning | |||||
| 04 | Cover with Ventilation | 1 | 12907533932 | $90.21 | Shop at ECS Tuning | |||||
| 05 | E-box fan | 1 | 12907547141 | $144.83 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Cable tie | L=300MM/B=4,8MM | 1 | 61138377065 | $0.35 | Shop at ECS Tuning | ||||
| 06 | Plastic bolt | 2 | 12907537040 | $0.47 | Shop at ECS Tuning | |||||
| 07 | Plastic bolt | 4 | 12907522588 | $0.47 | Shop at ECS Tuning | |||||
| 08 | Grommet | 1 | 12907528949 | $3.37 | Shop at ECS Tuning | |||||
| 09 | Control unit support | 1 | 12907528939 | $18.54 | Shop at ECS Tuning | |||||
| 10 | Adapter | 1 | 12907528948 | $5.83 | Shop at ECS Tuning | |||||
| 11 | Cover electronic-box | 1 | 12907544575 | $29.14 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair kit for E module | 1 | 12907583910 | $22.30 | Shop at ECS Tuning | |||||
| 12 | Lock lever | 1 | 12907528935 | $0.75 | Shop at ECS Tuning | |||||
| 13 | Lock lever | 2 | 12907528933 | $0.75 | Shop at ECS Tuning | |||||
| 14 | Lock lever | 1 | 12907528934 | $0.75 | Shop at ECS Tuning | |||||
| 15 | Control unit support | 1 | 12907793463 | $11.46 | Shop at ECS Tuning | |||||
| 16 | Carrier plate | 1 | 12907520902 | $3.46 | Shop at ECS Tuning | |||||
| 17 | Repair kit for E module | 1 | 12907583910 | $22.30 | Shop at ECS Tuning | |||||
| 18 | Fuse carrier | X | 61131387135 | $1.90 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Slider | X | 61138353716 | $0.68 | Shop at ECS Tuning | |||||
