Alternatormounting parts for BMW 5 Series E60 530xd (2007)

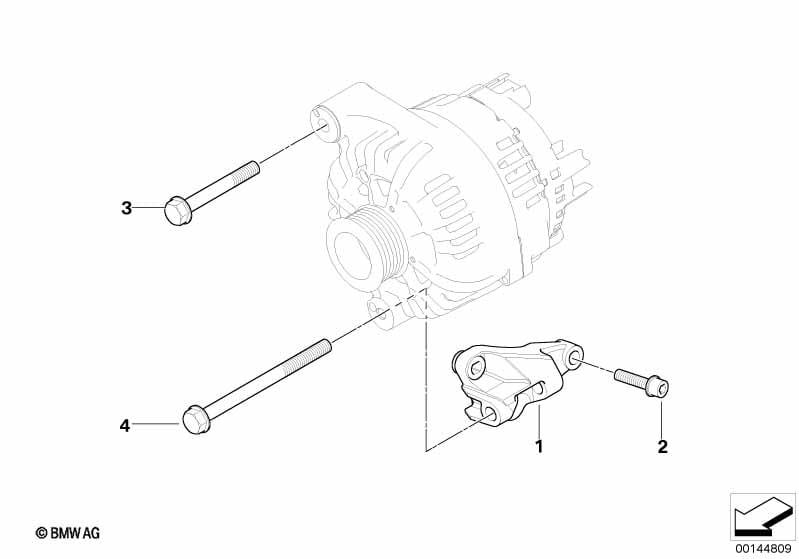

This Alternatormounting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530xd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Generator supporting bracket | 1 | 12317793090 | $15.77 | Shop at ECS Tuning | |||||
| 02 | Fillister head with washer | M8X38-U0-8.8 | 3 | 07119906057 | $0.62 | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M10X70 | 1 | 07119905818 | $1.78 | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M10X125 | 1 | 07119905523 | $2.84 | Shop at ECS Tuning |
