Cable, starter for BMW 3 Series E91 335d (2008)

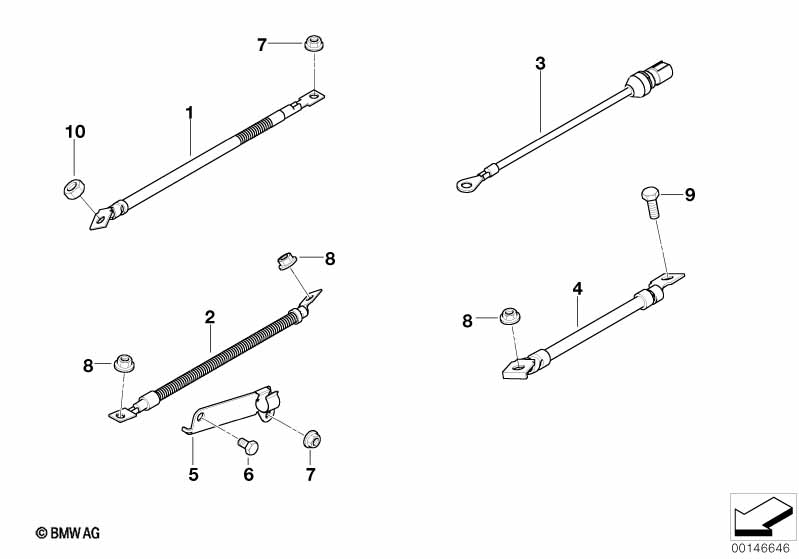

This Cable, starter technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 335d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cable, start motor supp point B+ | 1 | 12427809332 | $40.10 | Shop at ECS Tuning | |||||
| 02 | Cable alternator-starter | 1 | 12527789222 | $22.28 | Shop at ECS Tuning | |||||
| 03 | Lead for preheater system | 1 | 12427789231 | $16.65 | Shop at ECS Tuning | |||||
| 04 | Ground cable | 1 | 12427549393 | $15.05 | Shop at ECS Tuning | |||||
| 05 | Bracket, recharge cable | 1 | 12527806073 | $5.58 | Shop at ECS Tuning | |||||
| 06 | Hex bolt with washer | M8X18-Z1-ZNS3 | 1 | 07119902906 | $0.65 | Shop at ECS Tuning | ||||
| 07 | Nut | M6 | 2 | 07146973709 | $0.27 | Shop at ECS Tuning | ||||
| 08 | Flange nut | M8 | 3 | 07143413174 | $0.36 | Shop at ECS Tuning | ||||
| 09 | Hex bolt | M8X16-8.8-ZNS3 | 1 | 07119902900 | $0.36 | Shop at ECS Tuning | ||||
| 10 | Collar nut | M8-8-SC-ZNNIV | 1 | 07119906089 | $0.32 | Shop at ECS Tuning |
