Pulse generator for BMW 3 Series E30 320i (1988)

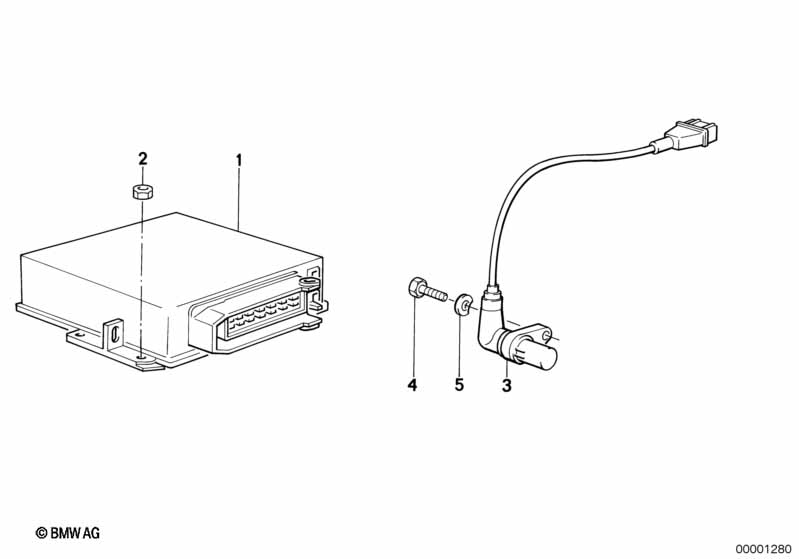

This Pulse generator technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Fillister head with washer | M6X12-Z3 | 1 | 07119919886 | $0.47 | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 03 | Pulse generator | 1 | 12141720856 | Shop at ECS Tuning | ||||||
| 04 | Hex head screw | ST6,3X19-C-Z1 | 4 | 07119916970 | $0.30 | Shop at ECS Tuning | ||||
