Control unit NOX for BMW 3 Series E30 M3 (1990)

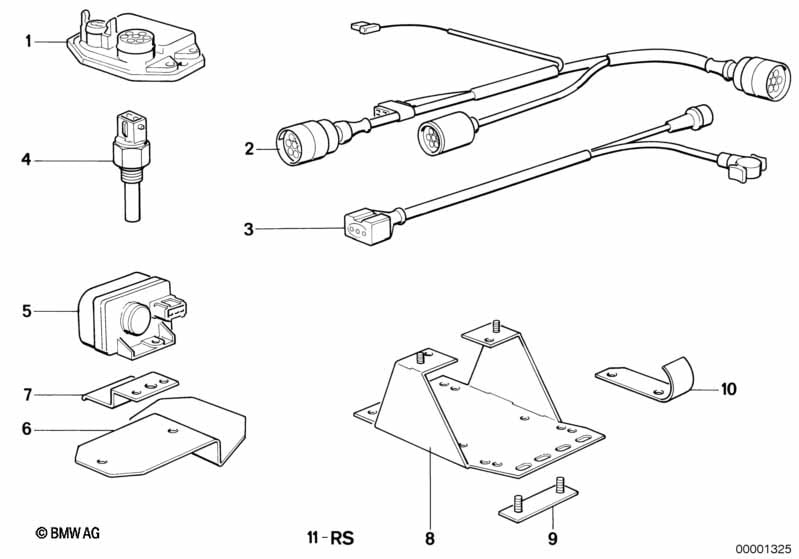

This Control unit NOX technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to Telefunken TSZI ignition control unit |
|||||||||
| 04 | Temperature sensor, water | 1 | 09/1987 | 13621709967 | Shop at ECS Tuning | |||||
| 04 | Temperature sensor, water | 1 | 09/1987 | 13621709967 | Shop at ECS Tuning | |||||
| 05 | Fuel injection system-ressure sensor | 1 | 09/1987 | 13621286679 | $167.72 | Shop at ECS Tuning | ||||
| 06 | Holder | 1 | 09/1987 | 13621310617 | $5.17 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 M3 Control unit NOX?
- This technical diagram illustrates the Control unit NOX within the Engine electrical system group for the 3 Series E30 M3 produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the Temperature sensor, water (Part #13621709967).
- Which models use the hardware listed in this Control unit NOX?
- The hardware and components featured in the Control unit NOX are specific to the 3 Series E30 M3 produced during 1990. These technical specifications ensure that parts like the Temperature sensor, water (13621709967) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Control unit NOX assembly?
- Each item in the Control unit NOX corresponds to the numbered list below the illustration. For the 3 Series E30 M3, you can identify the Temperature sensor, water by locating its position on the schematic, which then links to the official BMW part number 13621709967 for the Engine electrical system section.
