Alternator for BMW 3 Series E30 320i (1992)

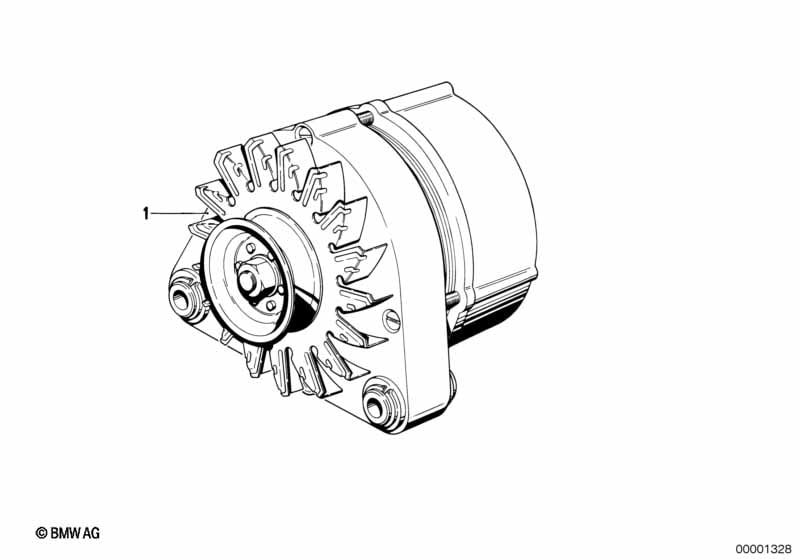

This Alternator technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| M20 B20 | ||||||||||
| 01 | Alternator | 80A | 1 | 11/1985 | 12311726601 | $728.19 | ENDED | Shop at ECS Tuning | ||
| 01 | Alternator | 90A/95A | 1 | 11/1985 | 12311726602 | $312.48 | ENDED | Shop at ECS Tuning | ||
| 01 | Exch. generator | 80A | 1 | 11/1985 | 12311726604 | $421.69 | ENDED | Shop at ECS Tuning | ||
| 01 | RP REMAN alternator | 90A | 1 | 11/1985 | 12312287828 | Shop at ECS Tuning | ||||
| 01 | RP REMAN alternator | 90A | 1 | 01/1986 | 12312287828 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 320i Alternator?
- This technical diagram illustrates the Alternator within the Engine electrical system group for the 3 Series E30 320i produced during 1992. It provides a detailed exploded view of the components, identifying key parts such as the Alternator (Part #12311726601).
- Which models use the hardware listed in this Alternator?
- The hardware and components featured in the Alternator are specific to the 3 Series E30 320i produced during 1992. These technical specifications ensure that parts like the Alternator (12311726601) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Alternator assembly?
- Each item in the Alternator corresponds to the numbered list below the illustration. For the 3 Series E30 320i, you can identify the Alternator by locating its position on the schematic, which then links to the official BMW part number 12311726601 for the Engine electrical system section.
