Alternatormounting parts for BMW 3 Series E30 320i (1991)

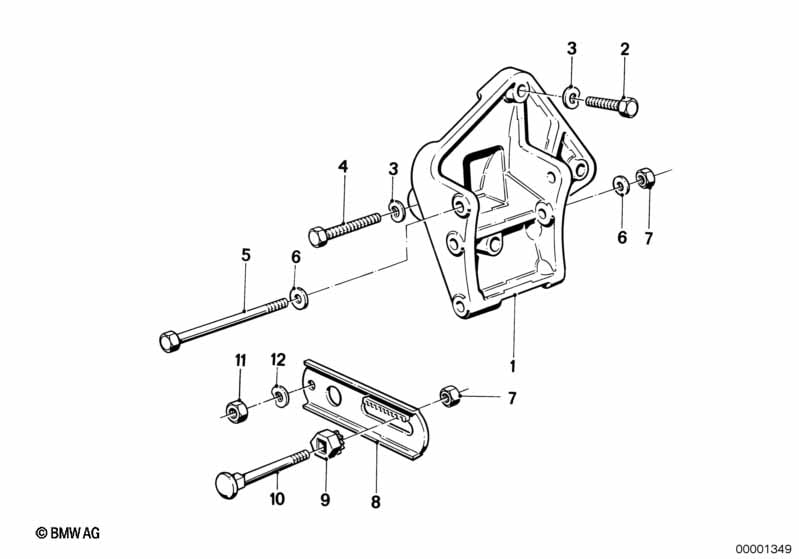

This Alternatormounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting bracket | 1 | 32411264642 | $73.84 | Shop at ECS Tuning | |||||
| 02 | Hex bolt | M8X30-ZN | 2 | 07119913662 | $0.22 | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M8X30 | 2 | 07119913664 | $0.47 | Shop at ECS Tuning | ||||
| 03 | Wave washer | 8,4X15-ZNS3 | 3 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M8X60-ZNNIV SI | 1 | 07119905974 | Shop at ECS Tuning | |||||
| 05 | Hex bolt | M8X85 | 1 | 12311716014 | $1.13 | Shop at ECS Tuning | ||||
| 06 | Wave washer | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 08 | Adjusting bar | 1 | 06/1983 | 12311274833 | $7.25 | Shop at ECS Tuning | ||||
| 09 | Idler | 1 | 12317677914 | $4.26 | Shop at ECS Tuning | |||||
| 10 | Saucer-head screw | M8X50 | 1 | 12311276540 | $0.93 | ENDED | Shop at ECS Tuning | |||
| For vehicles with without catalytic converter |
S199A=No |
|||||||||
| 10 | Saucer-head screw | M8X80 | 1 | 12311276516 | $2.40 | Shop at ECS Tuning | ||||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 10 | Saucer-head screw | M8X50 | 1 | 12311276540 | $0.93 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 11 | Self-locking hex nut | M8-8-ZNS3 | 1 | 07129904002 | $0.18 | Shop at ECS Tuning | ||||
| 12 | Wave washer | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 320i Alternatormounting parts?
- This technical diagram illustrates the Alternatormounting parts within the Engine electrical system group for the 3 Series E30 320i produced during 1991. It provides a detailed exploded view of the components, identifying key parts such as the Supporting bracket (Part #32411264642).
- Which models use the hardware listed in this Alternatormounting parts?
- The hardware and components featured in the Alternatormounting parts are specific to the 3 Series E30 320i produced during 1991. These technical specifications ensure that parts like the Supporting bracket (32411264642) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Alternatormounting parts assembly?
- Each item in the Alternatormounting parts corresponds to the numbered list below the illustration. For the 3 Series E30 320i, you can identify the Supporting bracket by locating its position on the schematic, which then links to the official BMW part number 32411264642 for the Engine electrical system section.
