Alternatormounting parts for BMW 3 Series E30 324d

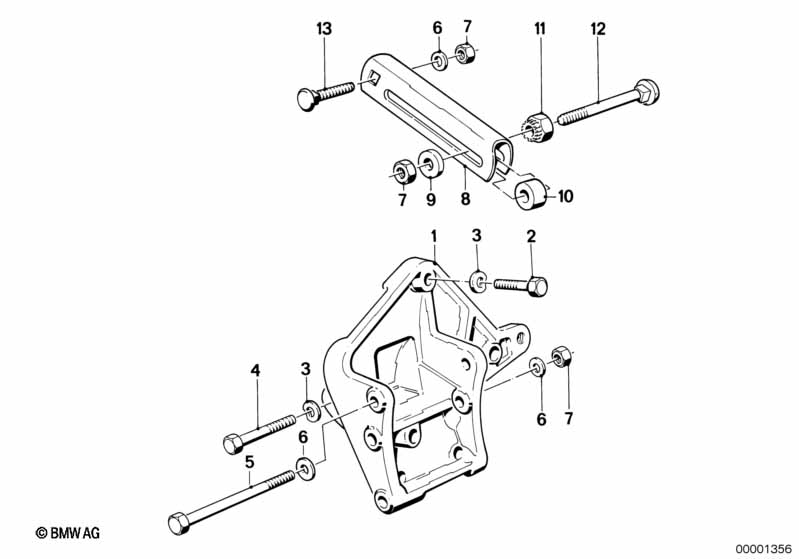

This Alternatormounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 324d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting bracket | 1 | 12312242230 | $62.82 | Shop at ECS Tuning | |||||
| 02 | Hex bolt | M8X30 | 2 | 07119913664 | $0.47 | Shop at ECS Tuning | ||||
| 03 | Wave washer | 8,4X15-ZNS3 | 3 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M8X60-ZNNIV SI | 1 | 07119905974 | Shop at ECS Tuning | |||||
| 05 | Hex bolt | M8X85-8.8 | 1 | 07119908003 | Shop at ECS Tuning | |||||
| 05 | Hex bolt | M8X85 | 1 | 12311716014 | $1.13 | Shop at ECS Tuning | ||||
| 06 | Wave washer | 8,4X15-ZNS3 | 3 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 07 | Self-locking hex nut | M8-8-ZNS3 | 3 | 07129904002 | $0.18 | Shop at ECS Tuning | ||||
| 08 | Adjusting bar | 1 | 01/1989 | 12311288416 | $28.16 | Shop at ECS Tuning | ||||
| 08 | Adjusting bar | 1 | 01/1989 | 12312242843 | $5.93 | Shop at ECS Tuning | ||||
| 09 | Wave washer | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 09 | Washer | 1 | 12311277576 | $8.55 | ENDED | Shop at ECS Tuning | ||||
| 10 | Clamping bush | 1 | 01/1989 | 12311288444 | $7.37 | Shop at ECS Tuning | ||||
| 11 | Idler | 1 | 12317677914 | $4.26 | Shop at ECS Tuning | |||||
| 12 | Saucer-head screw | 1 | 01/1989 | 12311288435 | $2.18 | Shop at ECS Tuning | ||||
| 12 | Saucer-head screw | 1 | 01/1989 | 12311288435 | $2.18 | Shop at ECS Tuning | ||||
| 13 | Saucer-head screw | M8X30 | 1 | 01/1989 | 32411277375 | $1.12 | ENDED | Shop at ECS Tuning | ||
| 13 | Hex bolt with washer | M8X30-Z3 | 1 | 01/1989 | 07119915085 | $0.62 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
