Fastening parts, starter motor for BMW 3 Series E30 M3 (1990)

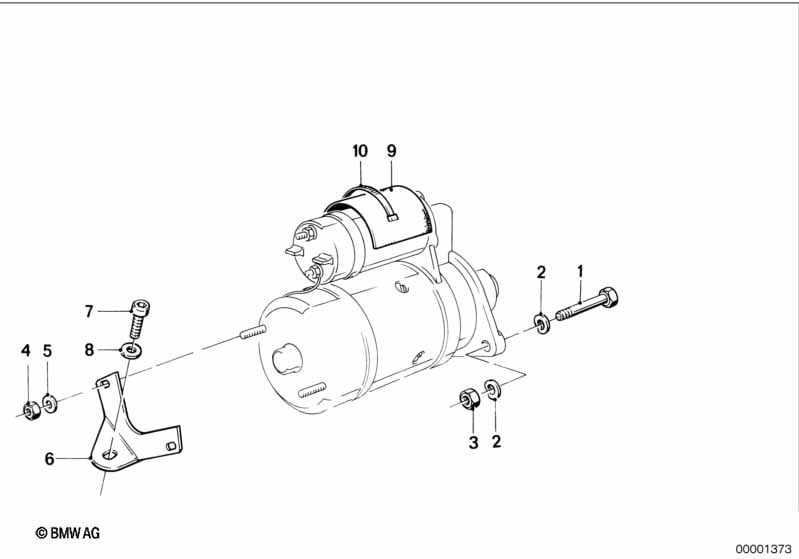

This Fastening parts, starter motor technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex bolt | M10X75 | 1 | 11111735525 | $0.93 | Shop at ECS Tuning | ||||
| 02 | Wave washer | B10-ZNS3 | 4 | 07119904463 | Shop at ECS Tuning | |||||
| 04 | Hex nut | M8-8-ZNS3 | 2 | 07/1991 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 04 | Hex nut | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 04 | Hex nut | M5-8-ZNNIV SI | 2 | 07119905729 | Shop at ECS Tuning | |||||
| 05 | Washer | 10X5,3X1-200 HV | 2 | 07119904206 | Shop at ECS Tuning | |||||
| 05 | Washer | 5.3-140 HV-ZNS | 2 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 06 | Support plate | 1 | 12411308480 | $6.29 | Shop at ECS Tuning | |||||
| 07 | Fillister-head screw | M10X12 | 1 | 72118108712 | $1.58 | ENDED | Shop at ECS Tuning | |||
| 08 | Washer | 10-200HV-ZNNIV | 1 | 07119907114 | Shop at ECS Tuning | |||||
| 09 | Covering solenoid switch | 1 | 61131361340 | $3.02 | Shop at ECS Tuning | |||||
| 10 | Cable tie | L=292MM/B=4,8MM | 2 | 61131377134 | $0.77 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 M3 Fastening parts, starter motor?
- This technical diagram illustrates the Fastening parts, starter motor within the Engine electrical system group for the 3 Series E30 M3 produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the Hex bolt (Part #11111735525).
- Which models use the hardware listed in this Fastening parts, starter motor?
- The hardware and components featured in the Fastening parts, starter motor are specific to the 3 Series E30 M3 produced during 1990. These technical specifications ensure that parts like the Hex bolt (11111735525) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fastening parts, starter motor assembly?
- Each item in the Fastening parts, starter motor corresponds to the numbered list below the illustration. For the 3 Series E30 M3, you can identify the Hex bolt by locating its position on the schematic, which then links to the official BMW part number 11111735525 for the Engine electrical system section.
