Glow plug unit/temp.sensor/trigg.contact for BMW 3 Series E30 324td (1991)

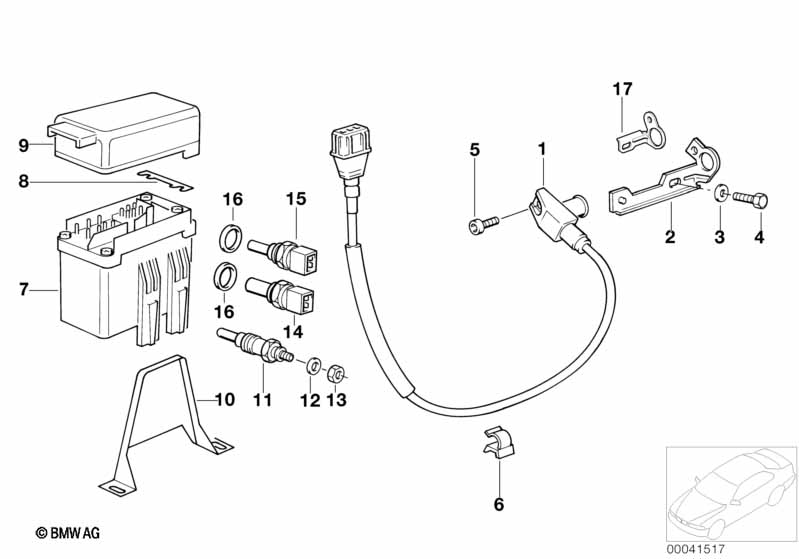

This Glow plug unit/temp.sensor/trigg.contact technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 324td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pulse generator | 1 | 13622242149 | $116.05 | Shop at ECS Tuning | |||||
| 02 | Bracket | 1 | 12522242569 | ENDED | Shop at ECS Tuning | |||||
| 03 | Washer | A6,4-ZNNIV SI | 1 | 07119904202 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M6X10-8.8-ZNS3 | 1 | 07119904633 | $0.20 | Shop at ECS Tuning | ||||
| 05 | ISA screw | M6X12-8.8-ZNNIV | 1 | 07129905867 | Shop at ECS Tuning | |||||
| 06 | Holder | 1 | 12522242784 | ENDED | Shop at ECS Tuning | |||||
| 07 | Glow plug control unit | 1 | 12212241385 | $386.22 | ENDED | Shop at ECS Tuning | ||||
| 08 | Fuse | B80 | 1 | 07119978840 | $0.63 | Shop at ECS Tuning | ||||
| 09 | Cap | 1 | 12521277567 | $3.40 | Shop at ECS Tuning | |||||
| 10 | Holder | 1 | 12522242051 | ENDED | Shop at ECS Tuning | |||||
| 11 | Glow plug | 4 SEK | 6 | 12232241389 | $25.12 | Shop at ECS Tuning | ||||
| 11 | Set glow plug | 4 SEK | 1 | 12239061354 | ENDED | Shop at ECS Tuning | ||||
| 12 | Wave washer | B5 | 6 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 13 | Hex nut | M5-8-ZNNIV SI | 6 | 07119905729 | Shop at ECS Tuning | |||||
| 14 | Coolant temperature sensor | M12X1,5 | 1 | 13622242184 | $37.35 | Shop at ECS Tuning | ||||
| 15 | Intake air temperature sensor | 2500-OHM | 1 | 13621711371 | $53.27 | Shop at ECS Tuning | ||||
| 16 | Gasket ring | A12X15-CU | 2 | 07119963129 | $0.11 | Shop at ECS Tuning |
