Ignition wire for BMW 3 Series E30 325e (1987)

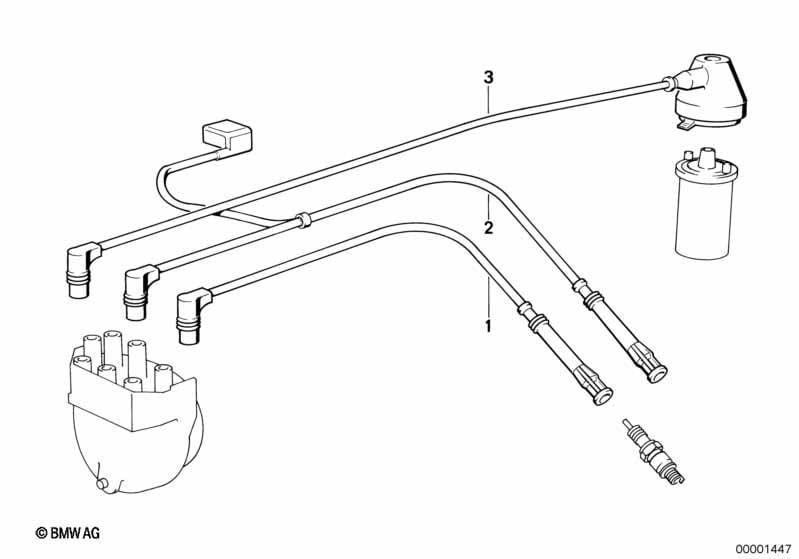

This Ignition wire technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ignition wire | ZYL.1 | 1 | 12121710631 | $33.45 | Shop at ECS Tuning | ||||
| 01 | Ignition wire | ZYL.2 | 1 | 12121710632 | $33.45 | Shop at ECS Tuning | ||||
| 01 | Ignition wire | ZYL.3 | 1 | 12121710633 | $33.45 | Shop at ECS Tuning | ||||
| 01 | Ignition wire | ZYL.4 | 1 | 12121710634 | $33.45 | Shop at ECS Tuning | ||||
| 01 | Ignition wire | ZYL.5 | 1 | 12121710635 | $33.45 | Shop at ECS Tuning | ||||
| 02 | Ignition wire | ZYL.6 | 1 | 12121717375 | $128.87 | Shop at ECS Tuning | ||||
| Pulse generator | ||||||||||
| 03 | Ignition wire | T1KL4 | 1 | 12121720601 | $50.66 | ENDED | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | Ignition wiring | X | 12121720529 | $350.15 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
