Engine wiring harness for BMW 4 Series F32 435iX (2016)

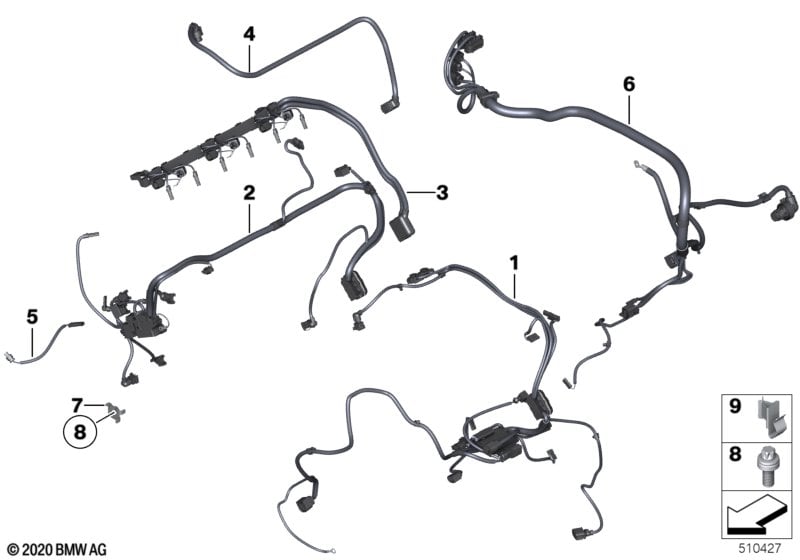

This Engine wiring harness technical drawing provides a detailed breakdown of the assembly for the 4 Series F32 435iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Automatic transmission or Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 01 | Wiring harness, eng. Sensoric module 1 | AWD-AUT-EU6 | 1 | 12518605146 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission only suitable for use with MEVD17.2G only suitable for use with PST xCL0B not suitable for use with LSF 4.2 |
S205A=No S2TBA=No |
|||||||||
| 01 | Wiring harness, eng. Sensoric module 1 | 1 | 12517646879 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Adapter | VDA | 1 | 12518638007 | Shop at ECS Tuning | |||||
| For vehicles with BMW Diesel with Blue Performance and Automatic transmission and Sport automatic transmission only suitable for use with MEVD17.2G only suitable for use with PST xCL0B not suitable for use with LSF 4.2 |
S163A=Yes S205A=Yes S2TBA=Yes |
|||||||||
| 01 | Wiring harness, eng. Sensoric module 1 | 1 | 12517646881 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Adapter | VDA | 1 | 12518638007 | Shop at ECS Tuning | |||||
| For vehicles with BMW Diesel with Blue Performance and Automatic transmission and Sport automatic transmission only suitable for use with MEVD17.2G only suitable for use with PST xCL0B not suitable for use with LSF 4.2 |
S163A=Yes S205A=Yes S2TBA=No |
|||||||||
| 01 | Wiring harness, eng. Sensoric module 1 | 1 | 12517646881 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Adapter | VDA | 1 | 12518638007 | Shop at ECS Tuning | |||||
| For vehicles with BMW Diesel with Blue Performance and Automatic transmission and Sport automatic transmission only suitable for use with MEVD17.2G only suitable for use with PST xCL0B not suitable for use with LSF 4.2 |
S163A=Yes S205A=No S2TBA=Yes |
|||||||||
| 01 | Wiring harness, eng. Sensoric module 1 | 1 | 12517646881 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Adapter | VDA | 1 | 12518638007 | Shop at ECS Tuning | |||||
| For vehicles with BMW Diesel with Blue Performance and Automatic transmission and Sport automatic transmission only suitable for use with MEVD17.2G only suitable for use with PST xCL0B not suitable for use with LSF 4.2 |
S163A=Yes S205A=No S2TBA=No |
|||||||||
| 01 | Wiring harness, eng. Sensoric module 1 | 1 | 12517646881 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Adapter | VDA | 1 | 12518638007 | Shop at ECS Tuning | |||||
| For vehicles with BMW Diesel with Blue Performance and Automatic transmission and Sport automatic transmission only suitable for use with MEVD17.2G only suitable for use with PST xCL0B not suitable for use with LSF 4.2 |
S163A=No S205A=Yes S2TBA=Yes |
|||||||||
| 01 | Wiring harness, eng. Sensoric module 1 | 1 | 12517646881 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Adapter | VDA | 1 | 12518638007 | Shop at ECS Tuning | |||||
| For vehicles with BMW Diesel with Blue Performance and Automatic transmission and Sport automatic transmission only suitable for use with MEVD17.2G only suitable for use with PST xCL0B not suitable for use with LSF 4.2 |
S163A=No S205A=Yes S2TBA=No |
|||||||||
| 01 | Wiring harness, eng. Sensoric module 1 | 1 | 12517646881 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Adapter | VDA | 1 | 12518638007 | Shop at ECS Tuning | |||||
| For vehicles with BMW Diesel with Blue Performance and Automatic transmission and Sport automatic transmission only suitable for use with MEVD17.2G only suitable for use with PST xCL0B not suitable for use with LSF 4.2 |
S163A=No S205A=No S2TBA=Yes |
|||||||||
| 01 | Wiring harness, eng. Sensoric module 1 | 1 | 12517646881 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Adapter | VDA | 1 | 12518638007 | Shop at ECS Tuning | |||||
| 02 | Wiring harness, eng. Sensoric module 2 | 1 | 12518601843 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea |
L802A=Yes |
|||||||||
| 02 | Wiring harness, eng. Sensoric module 2 | 1 | 09/2012 | 12518601842 | Shop at ECS Tuning | |||||
| For vehicles with BMW Diesel with Blue Performance |
S163A=Yes |
|||||||||
| 02 | Wiring harness, eng. Sensoric module 2 | 1 | 02/2012 | 12518601843 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission and ALPINA Package |
S205A=Yes S2TBA=Yes S9XAA=No |
|||||||||
| 02 | Wiring harness, eng. Sensoric module 2 | 1 | 12518601842 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission and ALPINA Package |
S205A=Yes S2TBA=No S9XAA=No |
|||||||||
| 02 | Wiring harness, eng. Sensoric module 2 | 1 | 12518601842 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission and ALPINA Package |
S205A=No S2TBA=Yes S9XAA=No |
|||||||||
| 02 | Wiring harness, eng. Sensoric module 2 | 1 | 12518601842 | Shop at ECS Tuning | ||||||
| 03 | wiring harness, engine ignition module | 1 | 12517592511 | Shop at ECS Tuning | ||||||
| 04 | Wiring loom, eng., Valvetronic servomtr | 1 | 12517592508 | Shop at ECS Tuning | ||||||
| 05 | Wiring harness engine adapter Sensoric 2 | 1 | 12517592529 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission or Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 06 | wiring harness, engine trans. module | 1 | 12537607964 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=No |
|||||||||
| 06 | wiring harness, engine trans. module | 1 | 12537607970 | Shop at ECS Tuning | ||||||
