Alternatormounting parts for BMW 7 Series E32 750i (1989)

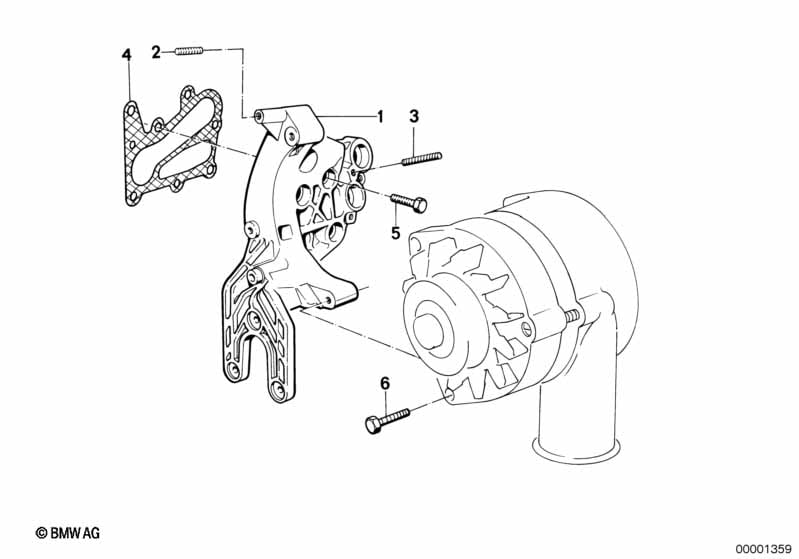

This Alternatormounting parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting bracket | 1 | 12311715544 | $62.82 | Shop at ECS Tuning | |||||
| 03 | Stud bolt | M8X40 | 1 | 07129903964 | Shop at ECS Tuning | |||||
| 04 | Gasket Asbestos Free | 1 | 12311742943 | $3.75 | Shop at ECS Tuning | |||||
| 05 | Hex bolt with washer | M8X35-Z3 | 8 | 07119912492 | $0.33 | Shop at ECS Tuning | ||||
| 06 | Hex bolt with washer | M8X45-Z3 | 2 | 07119912970 | $0.41 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 750i Alternatormounting parts?
- This technical diagram illustrates the Alternatormounting parts within the Engine electrical system group for the 7 Series E32 750i produced during 1989. It provides a detailed exploded view of the components, identifying key parts such as the Supporting bracket (Part #12311715544).
- Which models use the hardware listed in this Alternatormounting parts?
- The hardware and components featured in the Alternatormounting parts are specific to the 7 Series E32 750i produced during 1989. These technical specifications ensure that parts like the Supporting bracket (12311715544) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Alternatormounting parts assembly?
- Each item in the Alternatormounting parts corresponds to the numbered list below the illustration. For the 7 Series E32 750i, you can identify the Supporting bracket by locating its position on the schematic, which then links to the official BMW part number 12311715544 for the Engine electrical system section.
