Control unit EML for BMW 7 Series E32 750iLS (1994)

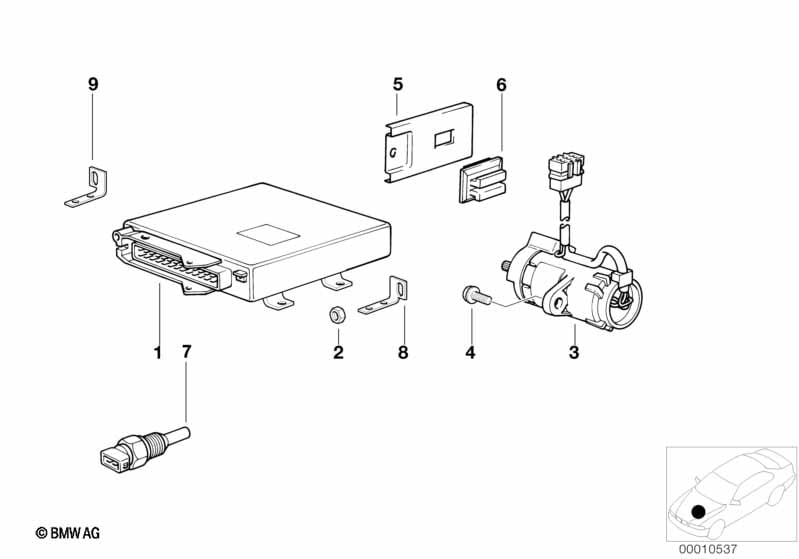

This Control unit EML technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iLS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with without catalytic converter |
S199A=No |
|||||||||
| 01 | Control unit EML | 1 | 12711725396 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with without catalytic converter and Motronic 1.7 |
S199A=No =Yes |
|||||||||
| 01 | Control unit EML | 1 | 12711725396 | ENDED | Shop at ECS Tuning | |||||
| 02 | Hex nut with plate | M6 | 2 | 07147134319 | $1.05 | Shop at ECS Tuning | ||||
| 03 | Accelerator Pedal sensor | 1 | 12721747630 | $1505.36 | Shop at ECS Tuning | |||||
| 04 | Hex bolt with washer | M6X20-Z3 | 2 | 07119915031 | $0.24 | Shop at ECS Tuning | ||||
| 05 | Bracket accelerat.pedal assy-potentionm. | 1 | 12721711401 | $1.87 | ENDED | Shop at ECS Tuning | ||||
| 06 | Bracket, plug connection black | 1 | 61131378908 | $0.87 | Shop at ECS Tuning | |||||
| 07 | Temperature sensor, water | M14X1,5 | 1 | 12621288158 | $40.02 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
