Cable Harness Fixings for BMW 7 Series E32 740iL (1994)

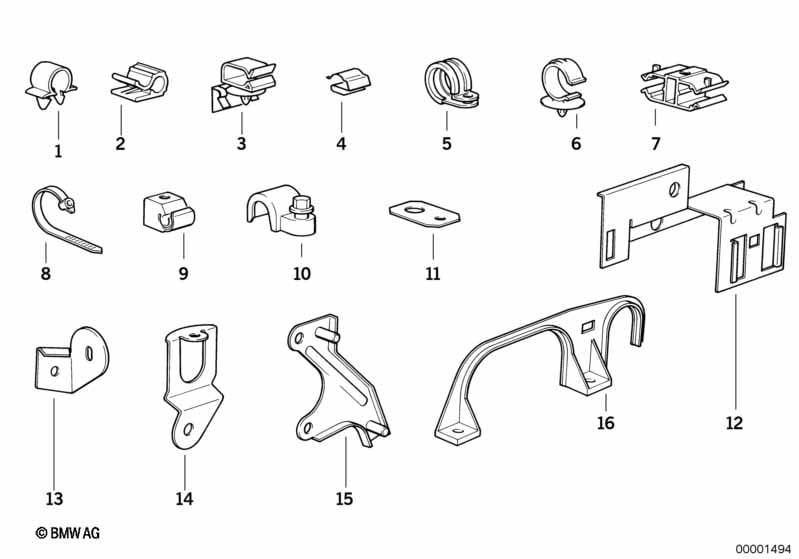

This Cable Harness Fixings technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 740iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cable holder | D=22MM | 2 | 61131369503 | $0.55 | Shop at ECS Tuning | ||||
| 01 | Tubing support | D=10,8MM | 4 | 64111364073 | $0.57 | Shop at ECS Tuning | ||||
| 02 | Cable holder | D=9MM | 2 | 12511707788 | $0.78 | Shop at ECS Tuning | ||||
| 03 | Cable holder | 5 | 24507557220 | $1.88 | Shop at ECS Tuning | |||||
| 04 | Cable clamp | D=9/B=4 | 4 | 61131351045 | $0.42 | Shop at ECS Tuning | ||||
| 05 | Clamp | D=13/6,4 | 3 | 12527575155 | Shop at ECS Tuning | |||||
| 05 | Clamp | D=18/6,4 | 3 | 64503450202 | $3.12 | Shop at ECS Tuning | ||||
| 06 | Cable holder | 4 | 12521747181 | $0.58 | Shop at ECS Tuning | |||||
| 07 | Holder | 1 | 12421718201 | $2.82 | ENDED | Shop at ECS Tuning | ||||
| 08 | Cable tie | L=119MM | 3 | 61138357028 | Shop at ECS Tuning | |||||
| 09 | Tubing support | 2 | 16131177494 | $1.60 | Shop at ECS Tuning | |||||
| 10 | Clamp | 4 | 12521710686 | $0.63 | Shop at ECS Tuning | |||||
| 11 | Bracket | 1 | 12141274641 | $0.98 | ENDED | Shop at ECS Tuning | ||||
| 12 | Diagnosis plug bracket | 1 | 12521736770 | $10.93 | ENDED | Shop at ECS Tuning | ||||
| 13 | Bracket/cable clamp | 1 | 12521736723 | $2.54 | ENDED | Shop at ECS Tuning | ||||
| 14 | Bracket, cable harness transmission | 1 | 12521747236 | $3.18 | ENDED | Shop at ECS Tuning | ||||
| 15 | Bracket/battery cable positive | 1 | 12521747130 | $7.82 | ENDED | Shop at ECS Tuning | ||||
| 16 | Bracket/cable control unit-box | 1 | 12521747073 | $4.63 | ENDED | Shop at ECS Tuning |
