Fastening parts, starter motor for BMW 8 Series E31 850Ci (1994)

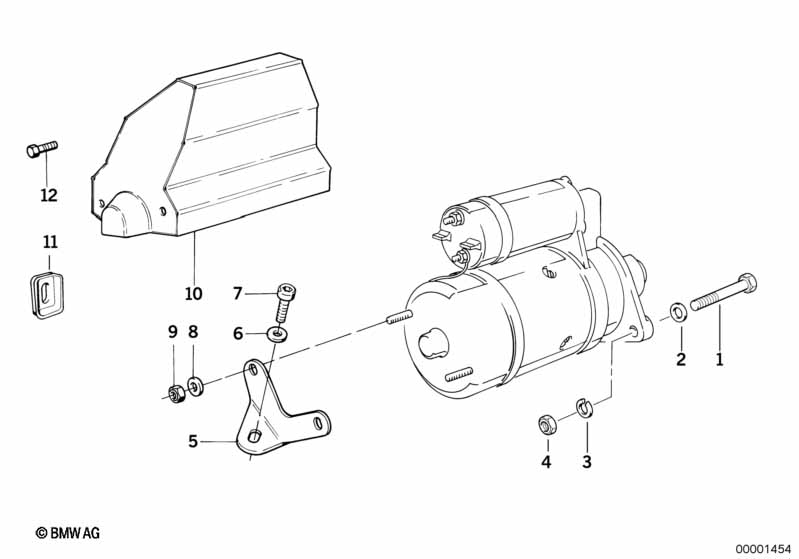

This Fastening parts, starter motor technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Torx bolt | M10X65-8.8-ZNS3 | 2 | 07129904681 | $1.64 | Shop at ECS Tuning | ||||
| 02 | Washer | 10-200HV-ZNNIV | 2 | 07119907114 | Shop at ECS Tuning | |||||
| 03 | Wave washer | B10-ZNS3 | 2 | 07119904463 | Shop at ECS Tuning | |||||
| 04 | Hex nut | AM10-10-ZNS3 | 2 | 07129904865 | $1.00 | Shop at ECS Tuning | ||||
| 05 | Support plate | 1 | 12411736100 | $7.02 | Shop at ECS Tuning | |||||
| 06 | Washer | 8,4X16X1,6-ZNNV | 1 | 07119907030 | Shop at ECS Tuning | |||||
| 07 | Hex bolt | M8X20-ZNNIV SI | 1 | 07119903039 | Shop at ECS Tuning | |||||
| 08 | Washer | A6,4-ZNNIV SI | 2 | 07119904202 | Shop at ECS Tuning | |||||
| 09 | Hex nut | M6-8-ZNS3 | 2 | 07119902751 | $0.56 | Shop at ECS Tuning | ||||
| 09 | Hex nut with plate | M6-8-ZNNIV SI | 2 | 07119905949 | $0.24 | Shop at ECS Tuning | ||||
| 10 | Heat resistant plate | 1 | 12411729361 | $54.70 | ENDED | Shop at ECS Tuning | ||||
| 11 | Profile-gasket | 1 | 12411725539 | $5.69 | Shop at ECS Tuning | |||||
| 12 | Hex bolt with washer | M6X16-U2-ZNS3 | 2 | 07119902913 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series E31 850Ci Fastening parts, starter motor?
- This technical diagram illustrates the Fastening parts, starter motor within the Engine electrical system group for the 8 Series E31 850Ci produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the Torx bolt (Part #07129904681).
- Which models use the hardware listed in this Fastening parts, starter motor?
- The hardware and components featured in the Fastening parts, starter motor are specific to the 8 Series E31 850Ci produced during 1994. These technical specifications ensure that parts like the Torx bolt (07129904681) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fastening parts, starter motor assembly?
- Each item in the Fastening parts, starter motor corresponds to the numbered list below the illustration. For the 8 Series E31 850Ci, you can identify the Torx bolt by locating its position on the schematic, which then links to the official BMW part number 07129904681 for the Engine electrical system section.
