Cable, starter for BMW 3 Series F35 320Li (2015)

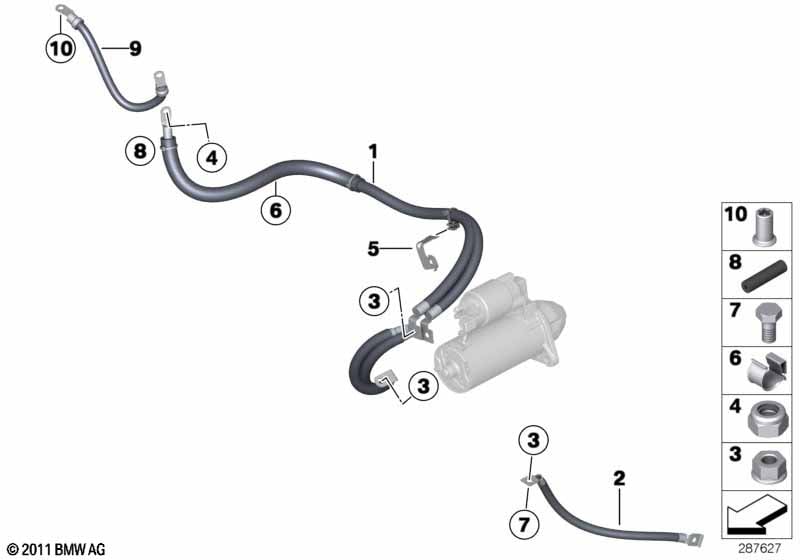

This Cable, starter technical drawing provides a detailed breakdown of the assembly for the 3 Series F35 320Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cable, altern, start motor supp point B+ | 1 | 12428621490 | Shop at ECS Tuning | ||||||
| 02 | Ground cable | 1 | 12427614083 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 02 | Ground cable | 1 | 12427621168 | Shop at ECS Tuning | ||||||
| 03 | Flange nut | M8 | 3 | 07143413174 | $0.36 | Shop at ECS Tuning | ||||
| 05 | Bracket for starter-generator cable | 1 | 12427612162 | Shop at ECS Tuning | ||||||
| 06 | Cable holder | 1 | 07147590403 | Shop at ECS Tuning | ||||||
| 07 | Hex bolt | M8X16-8.8-ZNS3 | 1 | 07119902900 | $0.36 | Shop at ECS Tuning | ||||
| 09 | Connecting line | 1 | 12428616810 | Shop at ECS Tuning | ||||||
| 10 | Ground point, battery negative terminal | M6 | 1 | 07149227473 | Shop at ECS Tuning | |||||
