Base control unit DME / MEVD1724 for BMW 5 Series F10 520i (2012)

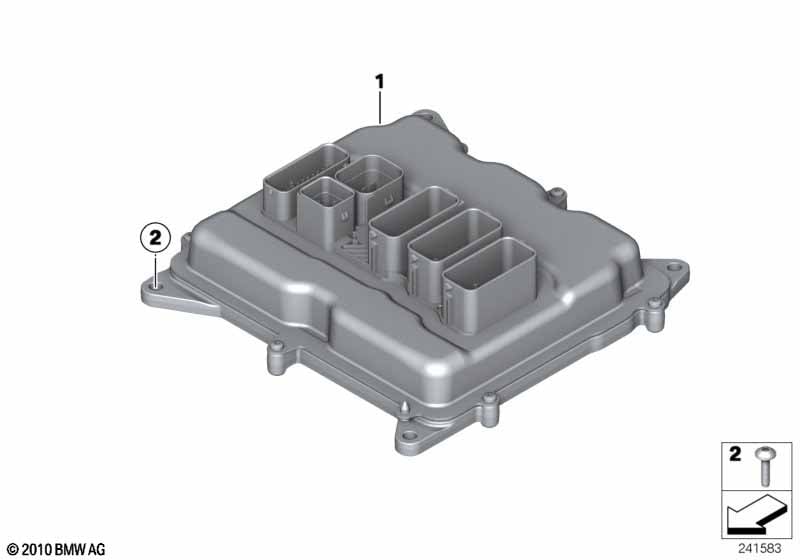

This Base control unit DME / MEVD1724 technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For national-market version China L8AAA an additional label for the DME basic control unit must also be ordered. |
|||||||||
| For vehicles with National version Korea |
L802A=Yes |
|||||||||
| 01 | Basic cotrol unit DME | MEVD1724 | 1 | 07/2013 | 12147649123 | Shop at ECS Tuning | ||||
| For vehicles with National version Korea |
L802A=No |
|||||||||
| 01 | Basic cotrol unit DME | MEVD1724 | 1 | 07/2012 | 12147637481 | Shop at ECS Tuning | ||||
| 01 | Basic cotrol unit DME | MEVD1724 | 1 | 07/2012 | 12147646763 | ENDED | Shop at ECS Tuning | |||
| 01 | Basic cotrol unit DME | MEVD1724 | 1 | 07/2013 | 12148606777 | Shop at ECS Tuning | ||||
| 01 | Basic cotrol unit DME | MEVD1724 | 1 | 07/2013 | 12148644368 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series F10 520i Base control unit DME / MEVD1724?
- This technical diagram illustrates the Base control unit DME / MEVD1724 within the Engine electrical system group for the 5 Series F10 520i produced during 2012. It provides a detailed exploded view of the components, identifying key parts such as the Basic cotrol unit DME (Part #12147649123).
- Which models use the hardware listed in this Base control unit DME / MEVD1724?
- The hardware and components featured in the Base control unit DME / MEVD1724 are specific to the 5 Series F10 520i produced during 2012. These technical specifications ensure that parts like the Basic cotrol unit DME (12147649123) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Base control unit DME / MEVD1724 assembly?
- Each item in the Base control unit DME / MEVD1724 corresponds to the numbered list below the illustration. For the 5 Series F10 520i, you can identify the Basic cotrol unit DME by locating its position on the schematic, which then links to the official BMW part number 12147649123 for the Engine electrical system section.
