Glow plug unit for BMW 1 Series F21 LCI 116d (2019)

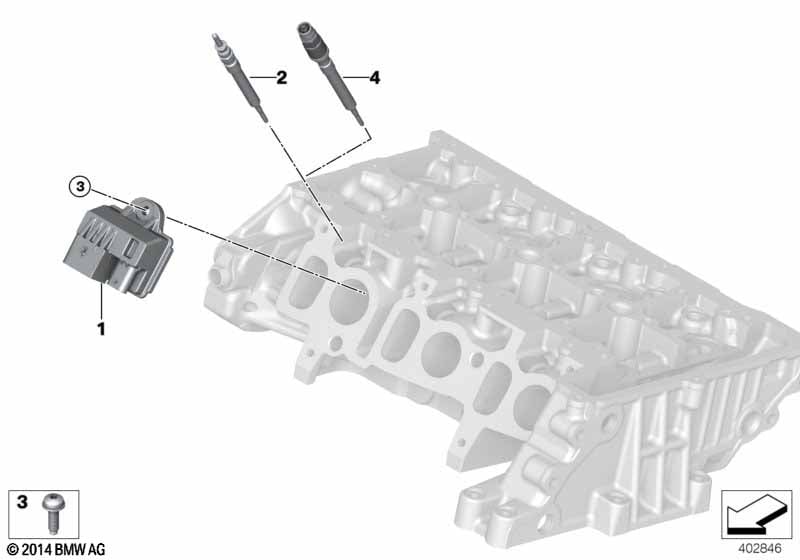

This Glow plug unit technical drawing provides a detailed breakdown of the assembly for the 1 Series F21 LCI 116d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention! Observe repair instructions 12 23 505 REP-REP-RAF2312B47-1223505 - V.7 when exchanging the glow plug with combustion chamber pressure sensor. |
|||||||||
| 01 | Preheating control unit | 1 | 12217822097 | Shop at ECS Tuning | ||||||
| 02 | Glow plug | 2 | 12238572135 | Shop at ECS Tuning | ||||||
| 03 | Screw | 6X20 | 1 | 07129907489 | Shop at ECS Tuning | |||||
| 04 | Glow plug w/ chamber pressure sensor | 1 | 12232361832 | Shop at ECS Tuning | ||||||
