Battery cable for BMW 4 Series F36 Gran Coupé 430i (2017)

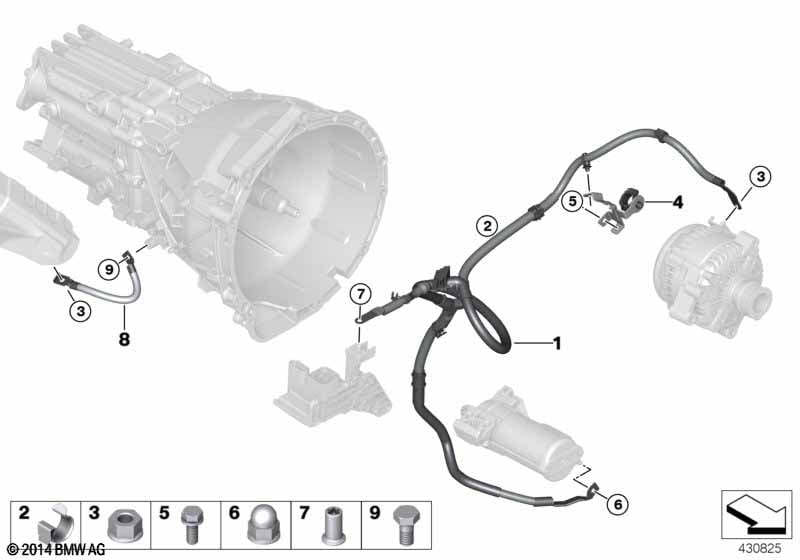

This Battery cable technical drawing provides a detailed breakdown of the assembly for the 4 Series F36 Gran Coupé 430i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cable alternator-starter | 1 | 12428638588 | Shop at ECS Tuning | ||||||
| 02 | Cable clamp | 1 | 03/2025 | 11787549563 | $1.04 | Shop at ECS Tuning | ||||
| 02 | Clip | 15-19 | 1 | 07147568538 | $3.49 | Shop at ECS Tuning | ||||
| 03 | Flange nut | M8 | 1 | 07143413174 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Holder | 1 | 12428642527 | Shop at ECS Tuning | ||||||
| 05 | Hex bolt with washer | M6X16-U1-8.8 | 1 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Cap nut | M8 | 1 | 12528583524 | Shop at ECS Tuning | |||||
| 07 | Ground point, battery negative terminal | M6 | 1 | 07149227473 | Shop at ECS Tuning | |||||
| 08 | Ground cable | 1 | 12427614083 | Shop at ECS Tuning | ||||||
| 09 | Hex bolt | M8X16-8.8-ZNS3 | 1 | 07119902900 | $0.36 | Shop at ECS Tuning |
