Wiring connections for BMW 3 Series E36 328i (1998)

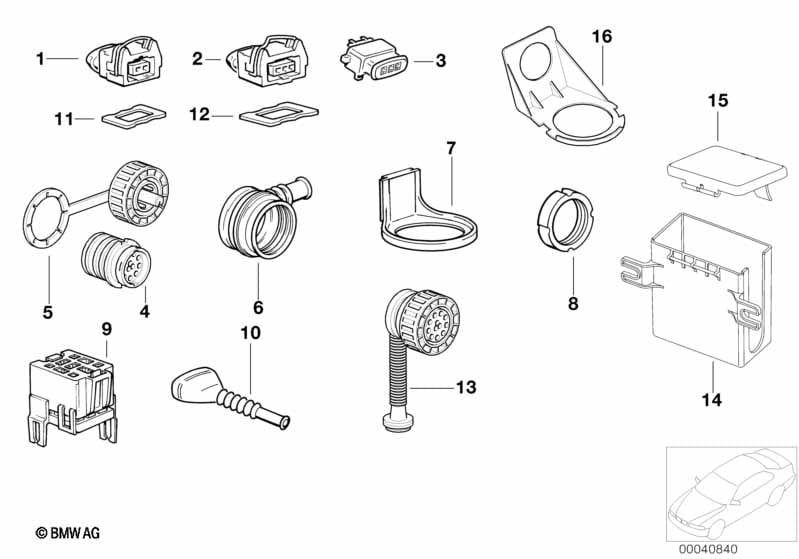

This Wiring connections technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Plug housing | 2 POL. | X | 12521732460 | $6.38 | Shop at ECS Tuning | ||||
| 02 | Plug housing | 3-POL | 4 | 12521732596 | $3.47 | Shop at ECS Tuning | ||||
| 02 | Plug housing | 3-POL | 1 | 12521732597 | $3.47 | ENDED | Shop at ECS Tuning | |||
| 06 | Protection cap | 4-POL | 1 | 12521713508 | $2.30 | ENDED | Shop at ECS Tuning | |||
| 09 | Relay holder, black white | 2 | 61131389113 | $5.32 | Shop at ECS Tuning | |||||
| 10 | Protection cap | 3 POL. | 2 | 12521732634 | $3.17 | Shop at ECS Tuning | ||||
| 11 | Gasket | 2-POL | X | 12521732593 | $1.11 | ENDED | Shop at ECS Tuning | |||
| 13 | Protective hose wiring harness ign.coil | 1 | 09/1995 | 12521703525 | $7.67 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
