Battery cable(battery rear) for BMW 3 Series E36 318i (1998)

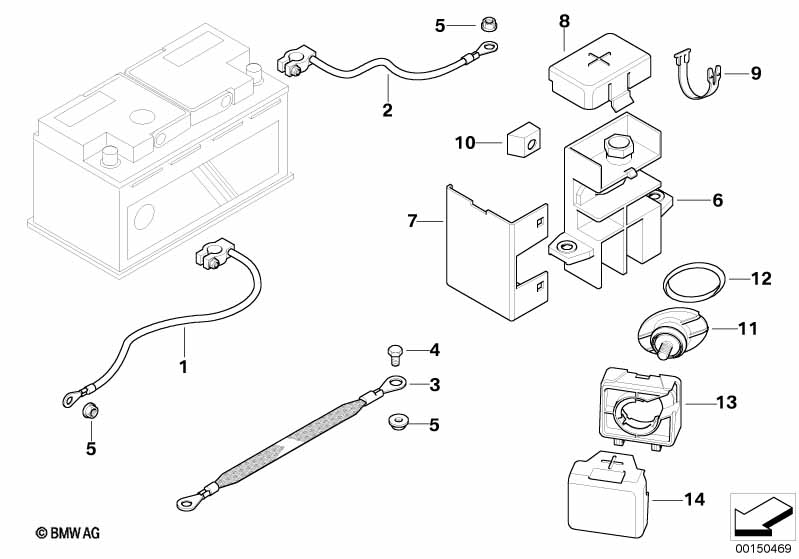

This Battery cable(battery rear) technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Battery cable negative | 1 | 12421732227 | $28.24 | Shop at ECS Tuning | |||||
| 02 | Battery cable (plus pole) | 1 | 12421435684 | $183.87 | +core | Shop at ECS Tuning | ||||
| 03 | Ground cable | L=380MM | 1 | 12421737755 | $19.50 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M8X20-ZNNIV SI | 1 | 07119903039 | Shop at ECS Tuning | |||||
| 05 | Hex nut | M8 | X | 07149125856 | $1.33 | Shop at ECS Tuning | ||||
| 06 | Base B+ | 1 | 12421433232 | $17.30 | Shop at ECS Tuning | |||||
| 07 | Cover | 1 | 12421433236 | $2.83 | Shop at ECS Tuning | |||||
| 07 | Cover | 1 | 12422246442 | $3.08 | Shop at ECS Tuning | |||||
| 08 | Cover | 1 | 12421730712 | $3.38 | Shop at ECS Tuning | |||||
| 09 | Shackle | 1 | 12521724197 | $0.68 | Shop at ECS Tuning | |||||
| 10 | Spacer holder | 1 | 12421740638 | $1.27 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
