Alternator, individual parts 80A for BMW 3 Series E36 318i (1999)

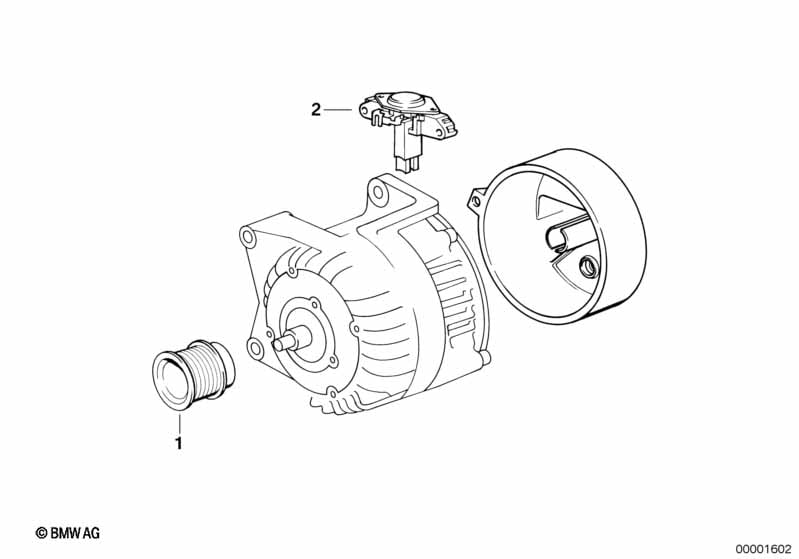

This Alternator, individual parts 80A technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO ALTERNATOR BOSCH Typ Nr. 0 123 320 012 BMW Nr. 12 31 1 247 487 / 488 |
|||||||||
| For vehicles with National version Australia |
L810A=Yes |
|||||||||
| 01 | Pulley | D=52MM | 1 | 12311247489 | $56.08 | ENDED | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | Compact alternator | 80A | X | 12311247487 | $350.42 | ENDED | Shop at ECS Tuning | |||
| -- | Compact alternator | 80A | X | 12311247488 | $435.12 | Shop at ECS Tuning | ||||
| 02 | Voltage regulator | BOSCH | 1 | 12311247892 | $124.68 | ENDED | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | Compact alternator | 80A | X | 12311247487 | $350.42 | ENDED | Shop at ECS Tuning | |||
| -- | Compact alternator | 80A | X | 12311247488 | $435.12 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
