Alternator for BMW 5 Series E39 528i (2000)

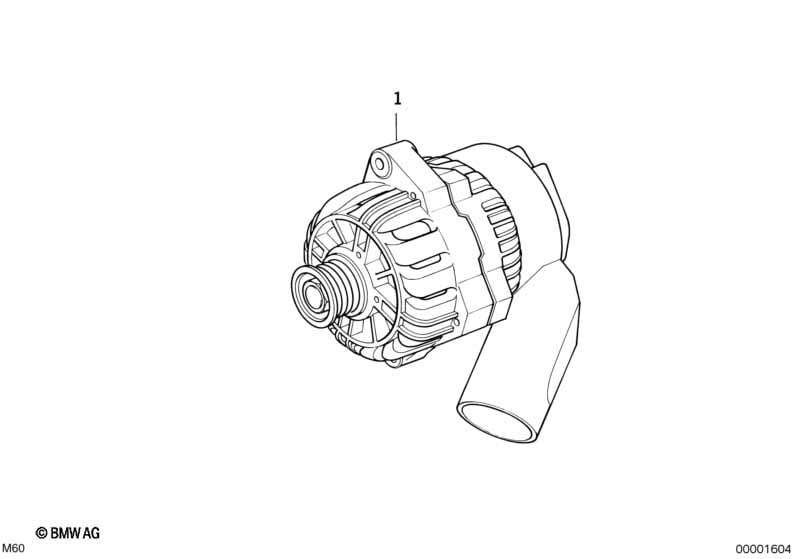

This Alternator technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP REMAN compact alternator | 120A | 1 | 12311432980 | $421.85 | ENDED | Shop at ECS Tuning | |||
| 01 | RP REMAN compact alternator | 120A BOSCH | 1 | 12317501690 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Cap nut | 1 | 12427565287 | $3.23 | Shop at ECS Tuning | |||||
| For vehicles with Steering wheel heater and Seat heating driver/passenger and Auxiliary heating and On-board monitor with TV and Navigation system Professional |
S248A=No S494A=No S536A=No S602A=No S609A=No |
|||||||||
| 01 | Compact alternator | 90A/VALEO | 1 | 12311432978 | $556.88 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
