Starter for BMW 2 Series F87 M2 M2 (2017)

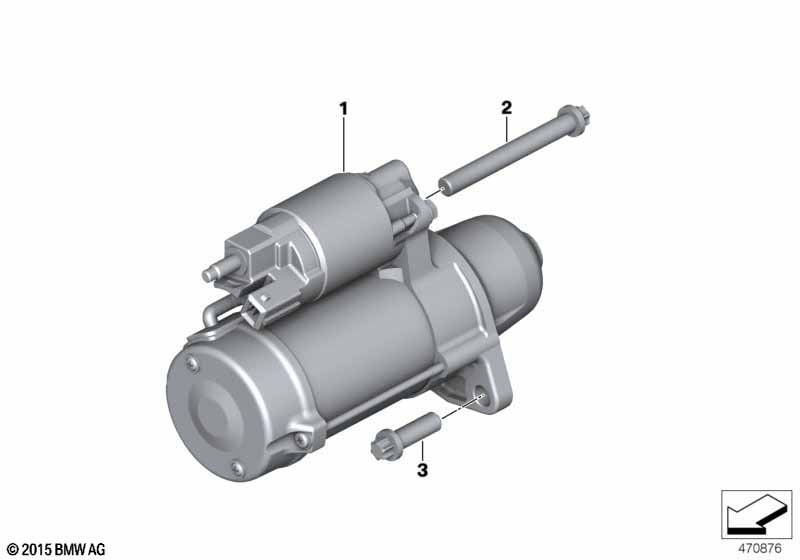

This Starter technical drawing provides a detailed breakdown of the assembly for the 2 Series F87 M2 M2. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Starter | DENSO | 1 | 12417631558 | Shop at ECS Tuning | |||||
| 01 | Starter | DENSO | 1 | 12417631559 | ENDED | Shop at ECS Tuning | ||||
| 02 | ASA-Bolt | M10X85-8.8-ZNS3 | 1 | 07129903800 | $1.78 | Shop at ECS Tuning | ||||
| 03 | ASA-Bolt | M10X30 | 1 | 07129903798 | $0.96 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F87 M2 M2 Starter?
- This technical diagram illustrates the Starter within the Engine electrical system group for the 2 Series F87 M2 M2 produced during 2017. It provides a detailed exploded view of the components, identifying key parts such as the Starter (Part #12417631558).
- Which models use the hardware listed in this Starter?
- The hardware and components featured in the Starter are specific to the 2 Series F87 M2 M2 produced during 2017. These technical specifications ensure that parts like the Starter (12417631558) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Starter assembly?
- Each item in the Starter corresponds to the numbered list below the illustration. For the 2 Series F87 M2 M2, you can identify the Starter by locating its position on the schematic, which then links to the official BMW part number 12417631558 for the Engine electrical system section.
