Ground cable for BMW 4 Series F82 M4 LCI M4 (2020)

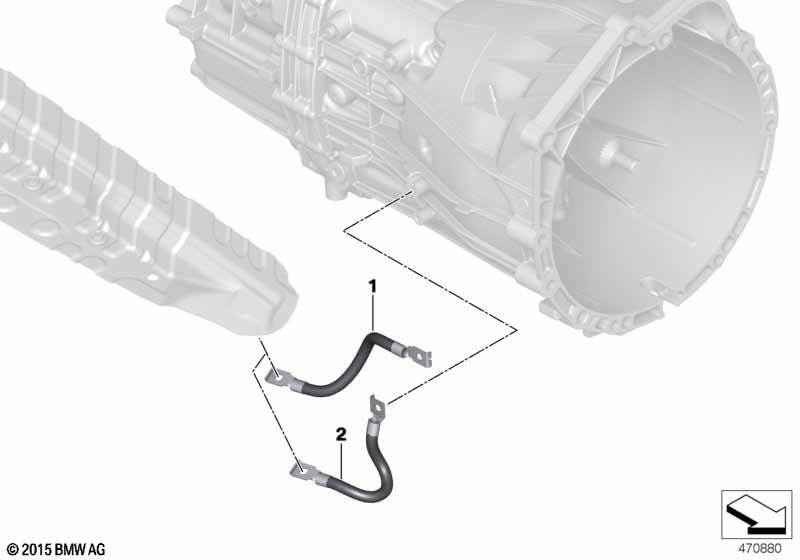

This Ground cable technical drawing provides a detailed breakdown of the assembly for the 4 Series F82 M4 LCI M4. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with M double-clutch transmiss. w/Drivelogic |
S2MKA=Yes |
|||||||||
| 01 | Ground cable | 1 | 12427848383 | Shop at ECS Tuning | ||||||
| For vehicles with M double-clutch transmiss. w/Drivelogic |
S2MKA=No |
|||||||||
| 02 | Ground cable | 1 | 12427851221 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series F82 M4 LCI M4 Ground cable?
- This technical diagram illustrates the Ground cable within the Engine electrical system group for the 4 Series F82 M4 LCI M4 produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Ground cable (Part #12427848383).
- Which models use the hardware listed in this Ground cable?
- The hardware and components featured in the Ground cable are specific to the 4 Series F82 M4 LCI M4 produced during 2020. These technical specifications ensure that parts like the Ground cable (12427848383) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Ground cable assembly?
- Each item in the Ground cable corresponds to the numbered list below the illustration. For the 4 Series F82 M4 LCI M4, you can identify the Ground cable by locating its position on the schematic, which then links to the official BMW part number 12427848383 for the Engine electrical system section.
